T-Drill   T Forming

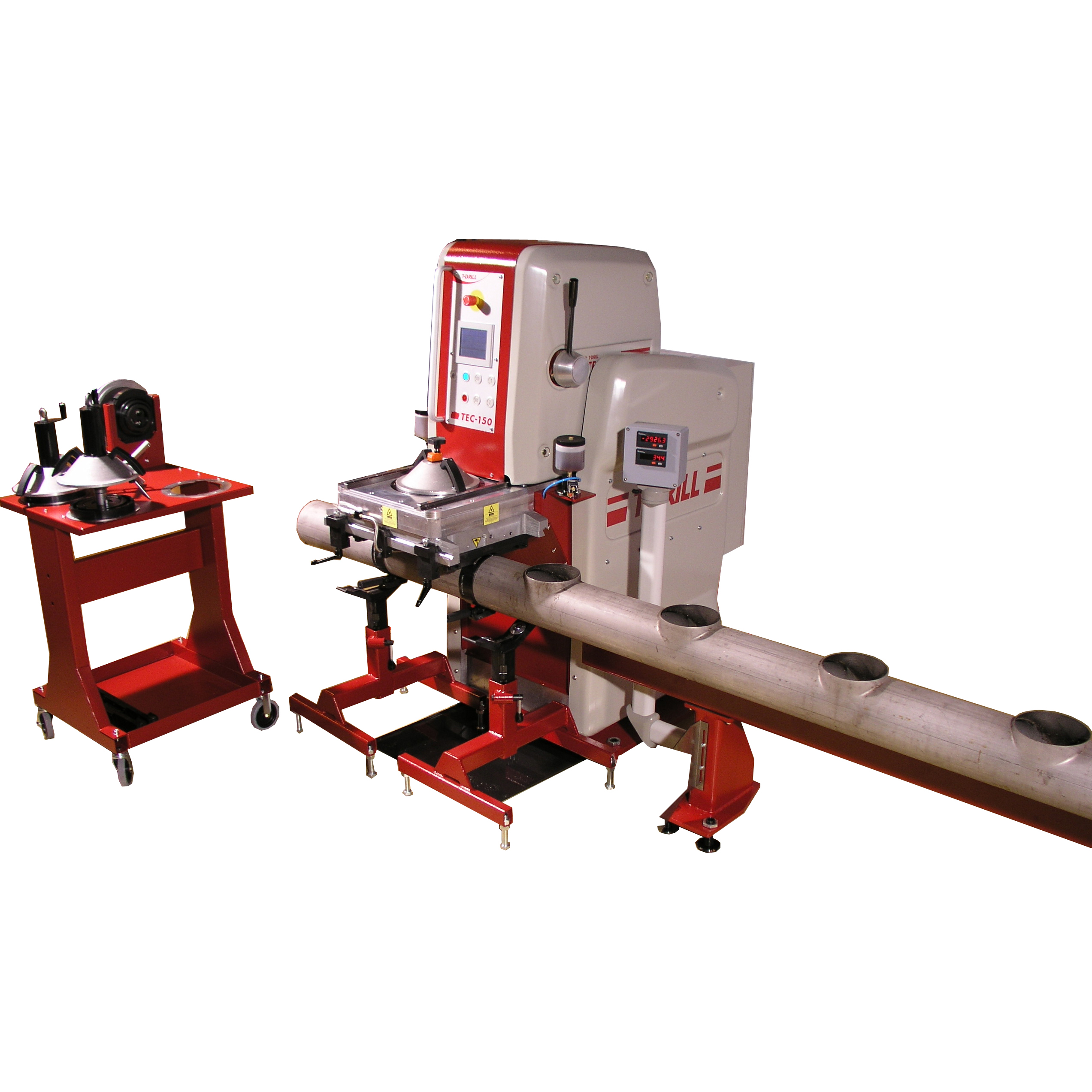

  • TEC-150-8 & Tube Measuring Table
    TEC-150-8 & Tube Measuring Table
    TEC-150-8 & Tube Measuring Table
TEC-150-8 & Tube Measuring Table

TEC-150-8 & Tube Measuring Table

Nhà sản xuất:T-DRILL Industries Inc

Mã sản phẩm:

Xuất xứ:Finland

Bảo hành:12 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
Catalogue sản phẩm
  • Thông số của sản phẩm
  • Collar sizes
     :
    21,3–219,1 mm / ½”- 8″
  • Run tube sizes
     :
    33,7–560 mm / ⅞’’ – 20”
  • Pipe material
     :
    Aluminium, Carbon steel, Stainless steel, Steel
  • Mô tả sản phẩm

  • Tube Measuring Table 3000

    • Manual measuring system for run-tube
    • For diameters 1⅛’’ – 12’’ and lengths min. 3 x O.D. and max 95”long tubes
    • Positioning tolerances:
       length +/- 0.02” (machine); +/- 0.04” (tube)
       angle +/- 0.5º (machine); +/- 1.0º (tube)
    • Longitudinal and angle position can be seen from digital read-out

    Tube Measuring Table 6000

    • Manual measuring system for run-tube
    • For diameters 1⅛’’ – 12’’ and lengths min. 3 x O.D. and max 118” long tubes
    • Positioning tolerances:
       length +/- 0.02” (machine); +/- 0.04” (tube)
       angle +/- 0.5º (machine); +/- 1.0º (tube)
    • Longitudinal and angle position can be seen from digital read-out

    Technical Information

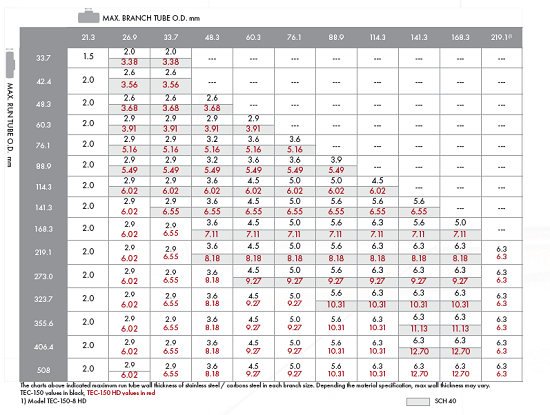

    Capacity Chart for Maximum Run Tube Wall Thickness in mm (run tube size on the left and branch size on the top)

    TEC-150-8 Value
    Collaring diameter ؽ’’ – 8’’ (pilot hole for 8'' collar is
    made separately)
    Run tube diameter Ø 1’’ – 20’’ IPS
    Tube material Carbon steel, Stainless steel, Copper-Nickel and Copper, Aluminium
    Mains supply 200-240 V/ 50/60 Hz, 3-phase
    400-480 V/ 50/60 Hz, 3-phase
    Rated power 5 kW
    Main fuse Max 3 x 63A
    Net weight 2200lbs
    Machine dimensions 67''x 39'' x 71'' (LxWxH)

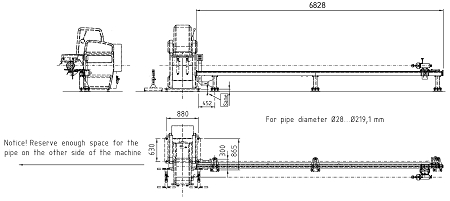

    Layout Drawing

    TEC-150-8 & positioning table for max 6000 mm long tubes
