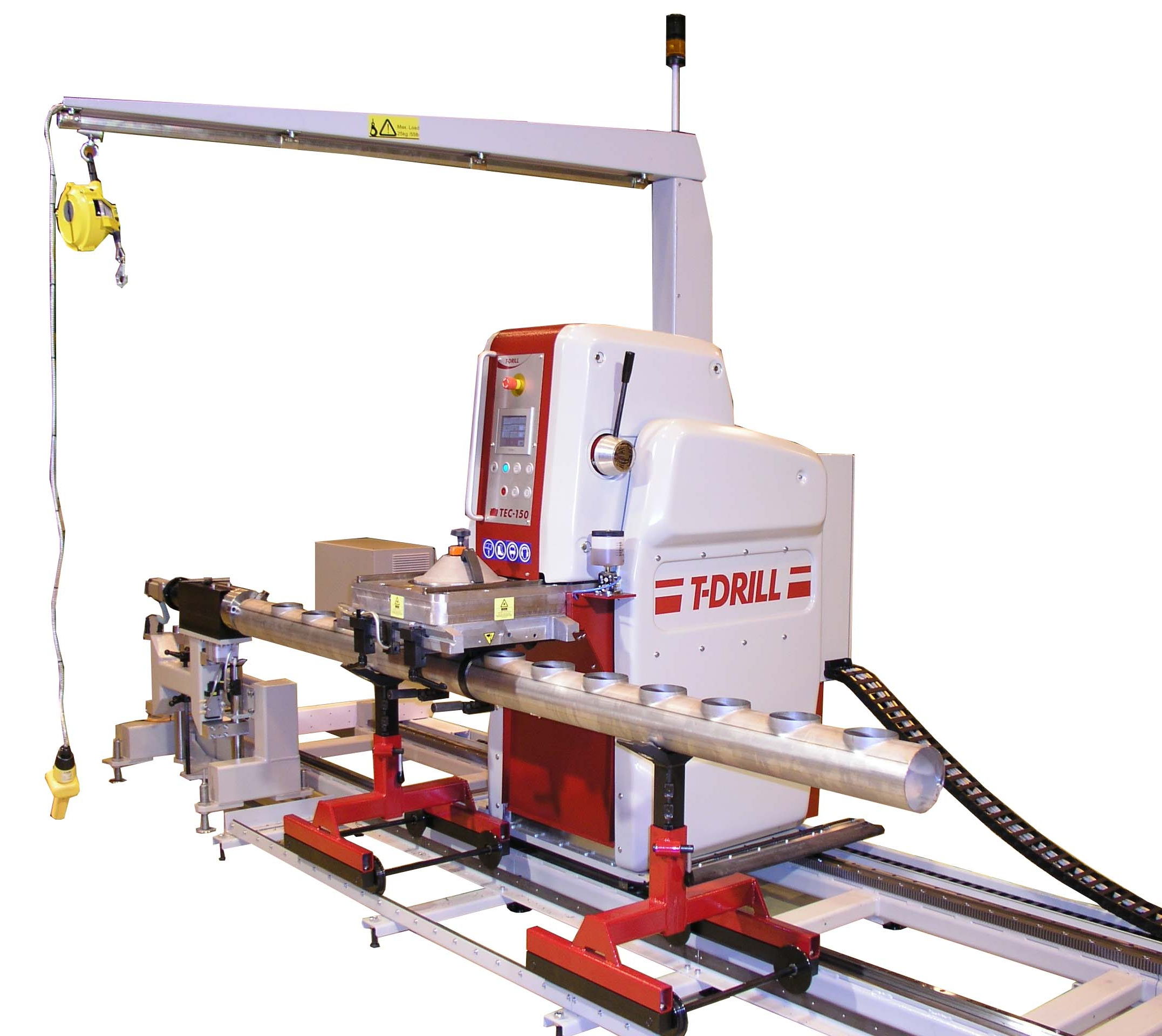

TEC-150 Collaring machine with NC-controlled Automatic Positioning System (APS). With the system the pipe can be positioned to the desired position and angle.The positioning system consists of rails and pipe indexing unit.
The machine can be moved longitudinally on the rails, while the pipe stays stationary. The task of the indexing unit is to rotate the pipe, when the collars should locate on different angle to each other. The positioning system is easy to operate with the help of a pendant control.
NC-controlled Automatic Positioning System 6000
- Automatic positioning system for run-tube
- For diameters 26,9–410 mm and lengths min. 3 x O.D. and max 6000 mm
- Positioning tolerances:
length +/- 0.5 mm (machine); +/- 1.0 mm (tube)
angle +/- 0.5º (machine); +/- 1.0º (tube)
- Longitudinal and angle position can be seen from digital read-out
Technical Information

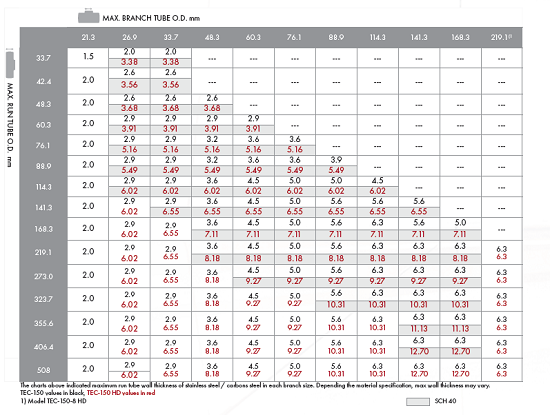

Capacity Chart for Maximum Run Tube Wall Thickness in mm (run tube size on the left and branch size on the top)
| TEC-150 |
Value |
| Material suitable for collaring |
Iron, Stainless steel, Aluminium, Copper, Copper-Nickel
|
| Branch tube diameter |
½’’ – 6’’ IPS, option 8'' (pilot hole for 8'' collar is made separately) |
| Run tube diameter |
1’’ – 20’’ IPS (Min ¾’' with ball-pulling) |
| Max wall thickness |
See cabability chart |
| Mains supply |
200-240 V / 50 Hz /60 Hz, 3-phase
400-480 V / 50 Hz /60 Hz, 3-phase
|
| Fuse size |
Max 3 x 63A |
| Connected power |
5 kW |
| Air pressure |
87 - 116 PSI
|
| Air consumption |
13.2 gal/min
|
| Machine dimensions |
70.1'' x 49.2'' x 67.0'' (L x W x H)
|
| Package dimensions |
74.8'' x 53.1'' x 80.7'' (L x W x H)
|
| Net weight |
2200 lbs
|
| Gross weight |
2866 lbs
|
| Noise level |
Max 85 dB |
Note! The values above are intended as a guide only.
