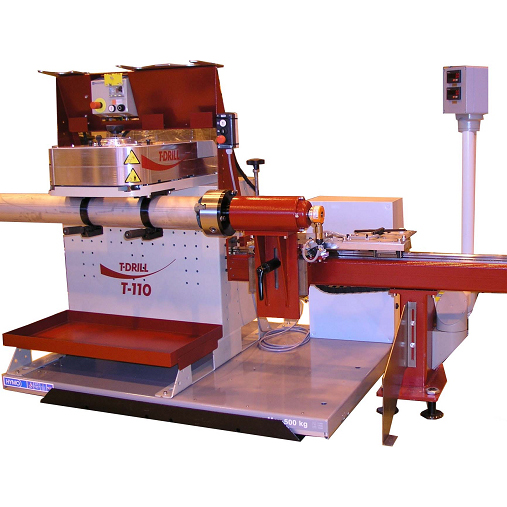

T-110 Collaring Machine with Tube Measuring Table
T-110 measuring table is used for controlled and precisely dimensioned transfers of pipes in the angle and axial directions. Using the measuring table it is possible to estimate accurately both the distance as well as the angle gap between two collars (or the start-off point and the collar). The measuring table is suitable for pipe sizes Ø1⅛ – 8’’. The maximum length of the pipe is 95” and 118”.
There are two standard lengths available: 95” and 118”.
Tube Tube Measuring Table 3000
- Manual measuring system for run-tube
- For diameters 1⅛ – 12” and lengths min. 3 x O.D. and max 95”
- Positioning tolerances:
ength +/- 0.02” (machine); +/- 0.04” (tube)
angle +/- 0.5º (machine); +/- 1.0º (tube)
- Longitudinal and angle position can be seen from digital read-out
Tube Tube Measuring Table 6000
- Manual measuring system for run-tube
- For diameters 1⅛ – 12” and lengths min. 3 x O.D. and max 118”
- Positioning tolerances:
length +/- 0.02” (machine); +/- 0.04” (tube)
angle +/- 0.5º (machine); +/- 1.0º (tube)
- Longitudinal and angle position can be seen from digital read-out
Technical information
| T-110 |
Value |
| Collar diameter |
ؽ’’ – 4’’ |
| Diameter of the run pipe |
Ø1’’ – 12’’ |
| Maximum wall thickness |
Steel 0.20''; Copper 0.20'' |
| Material to be formed |
Aluminium, Copper, Stainless Steel, Steel |
| Sound level |
Max. 78 dB |
| Measures of the unit |
35.4''x31.1''x48.4'' (LxWxH) |
| Weight of the unit |
551 lbs |
| Operating voltage |
200-240 V / 50 Hz /60 Hz, 3-phase
400-480 V / 50 Hz /60 Hz, 3-phase |
| Fuses |
16 A |
| Motor |
2,2 kW |
Note! The values above are intended as a guide only.

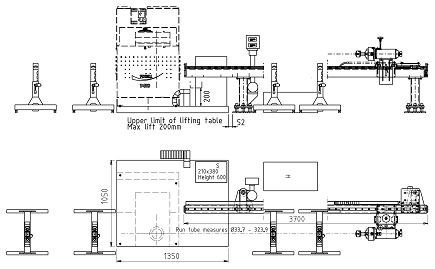

Layout Drawing of Collaring Machine T-110 & Positioning table for 3000 mm long tubes
