T-DRILL S-56 PC 1500 Punching and Collaring
Two methods, one unit, double efficiency.
The T-DRILL S-56 PC is a cutting-edge punching and collaring unit that seamlessly combines two methods in a single unit, ensuring unparalleled efficiency and precision.

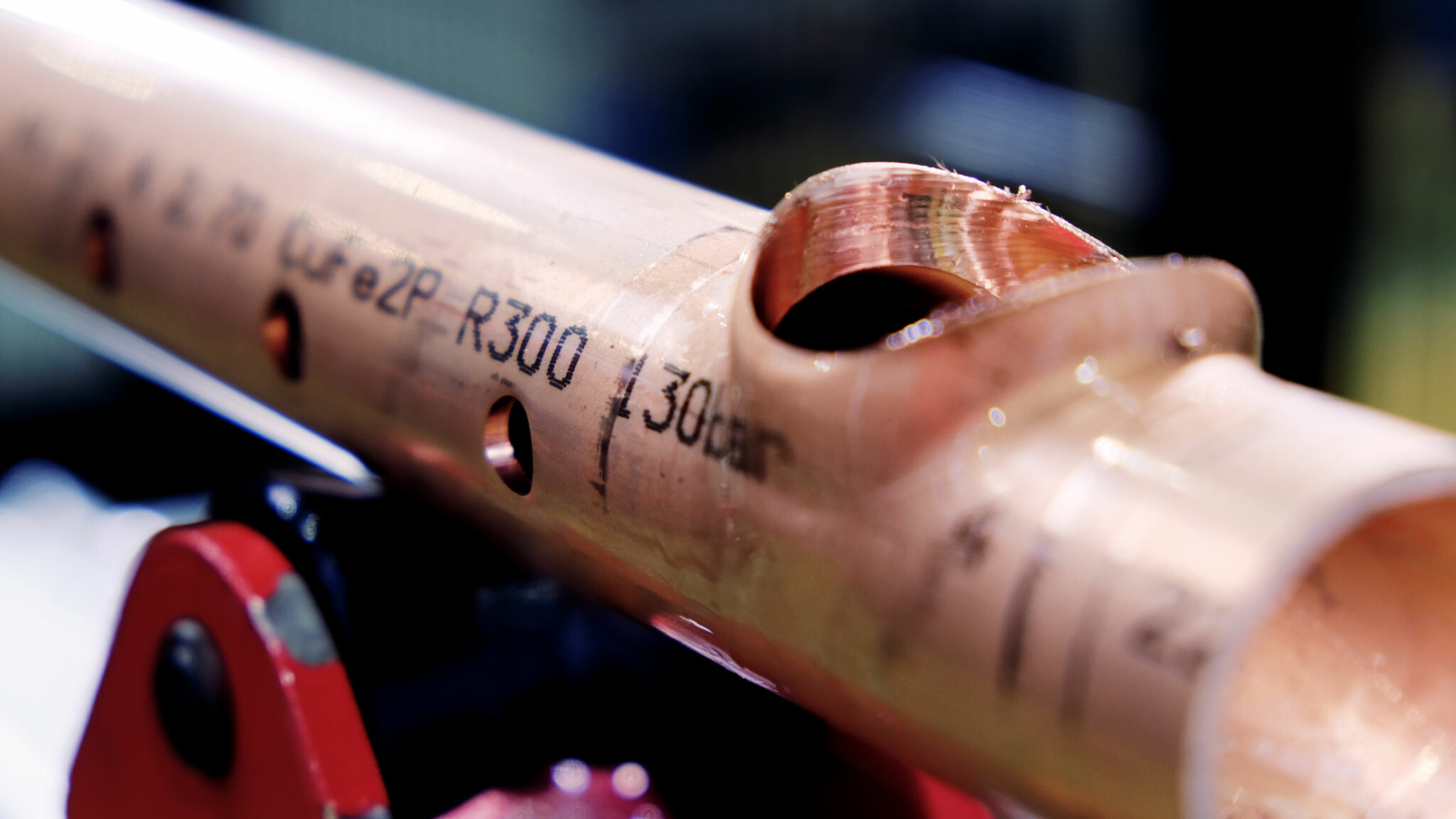

Designed for the HVACR industry, the S-56 PC offers classic T-DRILL Collaring alongside OD Punching in one cohesive system. Experience the swift production of C19400 Copper Iron (CuFe2P) manifolds with 50% less material handling, addressing the challenges in manufacturing coils for high-pressure CO2 systems.
KEY FEATURES:
- Versatile Pipe Range: Run pipe range from Ø16 to Ø108 mm, the S-56 PC 1500 is specifically designed for copper Iron (CuFe2P) tubes, it effortlessly handles tubes with a maximum wall thickness of 3,6 mm.
- Intuitive Control: Navigate with ease through your tasks with our user-friendly graphical interface. The intuitive controls make operation straightforward, enhancing productivity and reducing the learning curve for your team.
- Automatic Efficiency: Fast and automatic work cycles ensure that your projects are completed with speed and precision./li>
- Dual Functionality: Enjoy the benefits of two machines integrated into one unit. The S-56 PC 1500 offers both punching (punch range Ø5 mm – Ø22,5 mm) and collaring (collar range Ø12 mm – Ø58 mm) capabilities, providing a comprehensive solution for your HVACR needs.
- Cutting-Edge Engineering: Eliminate the need for T-fittings, reduce inventory costs, and simplify joint connections. The S-56 PC 1500 enables the creation of a solitary joint per aperture, significantly reducing the chance of leakage and minimizing inspection costs.
- Improved Efficiency: Improve your workflow by minimizing tube cutting. The S-56 PC 1500 ensures a reduced carbon footprint while sustaining optimal performance.
- Customization Options: Tailor the machine to your specific needs with a range of accessories and options. Upgrade your operation and enhance tool handling to match the unique requirements of your projects.
Additional Highlights:
- No T-fittings
- No costly inventories
- Tee ratio variation flexibility
- Smaller chance of leakage
- Minimum inspection cost
- Optimized flow characteristics
- Less tube cutting
- Reduced carbon footprint
- Accessories & options to customize and upgrade machine operation & tool handling
