T-65 Portable Heavy Duty Tee Forming Machine for Copper
The Heavy Duty T-DRILL T-65 is a privileged member in the T-DRILL tool family of copper tubes.

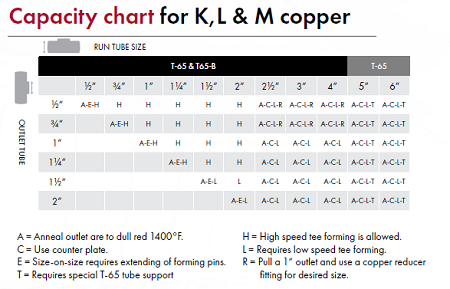

Having the capacity up to 2” out of the run tubes up to 4”(with optional retrofit kit up to 6″) will make you still more profitable and competitive. If a comparison is made between the installed cost of a tee fitting and T-DRILL joint you will see an improved profit that approaches 70%. This is documented in most any labor calculator in use.
CUT COSTS – IMPROVE QUALITY – INCREASE PROFIT
- Only one brazed joint
- No pipe cutting
- No T-fittings
- TEE ratio variation flexibility
- Less chance for leaks or call-backs
- Minimized inspection cost
- Improved flow characteristics
- No costly T-fitting inventories
Technical Information
| T-65 |
Value |
| Tee diameter |
½ - 2''
|
| Run tube diameter |
½ - 4'' (6") |
| Max. wall thickness |
K, L and M tubing |
| Material |
Copper |
| Cycle time |
15–60 sec |
| Spindle rotation speed |
0–500/50 rpm |
| Noice level |
82,5 dB (A) |
| Vibration |
less than 2,5 m/s2 |
| Dimensions of the unit |
22.4'' x 4.9'' x 7.0'' (L x D x H) |
| Weight of the unit |
12 lbs
|
| Supply voltage |
230V / 50Hz
120V / 60 Hz
110V / 50 Hz |
