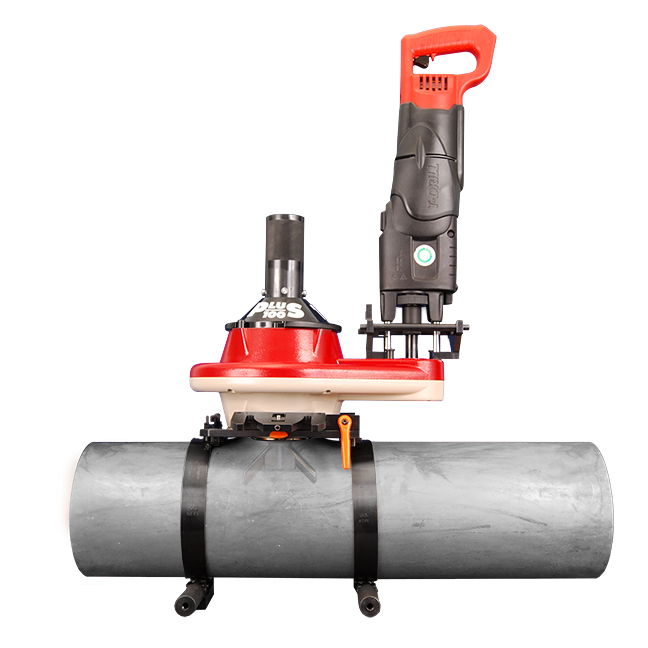

Plus 100 SS Portable Pipe Collaring System for Stainless Steel
The Plus 100 SS Pipe Collaring System for Stainless Steel is a profit producing attachment for the T-65 SS. It forms 2”- 4” mm outlets for butt welded joints on stainless steel pipes giving a comparable flexibility and quality to mechanically formed tee joints. This is an excellent solution to be used both on the job site or in the fabrication shop.
The use of Plus 100 SS cuts costs, improves quality and increases profits.
Technical Information

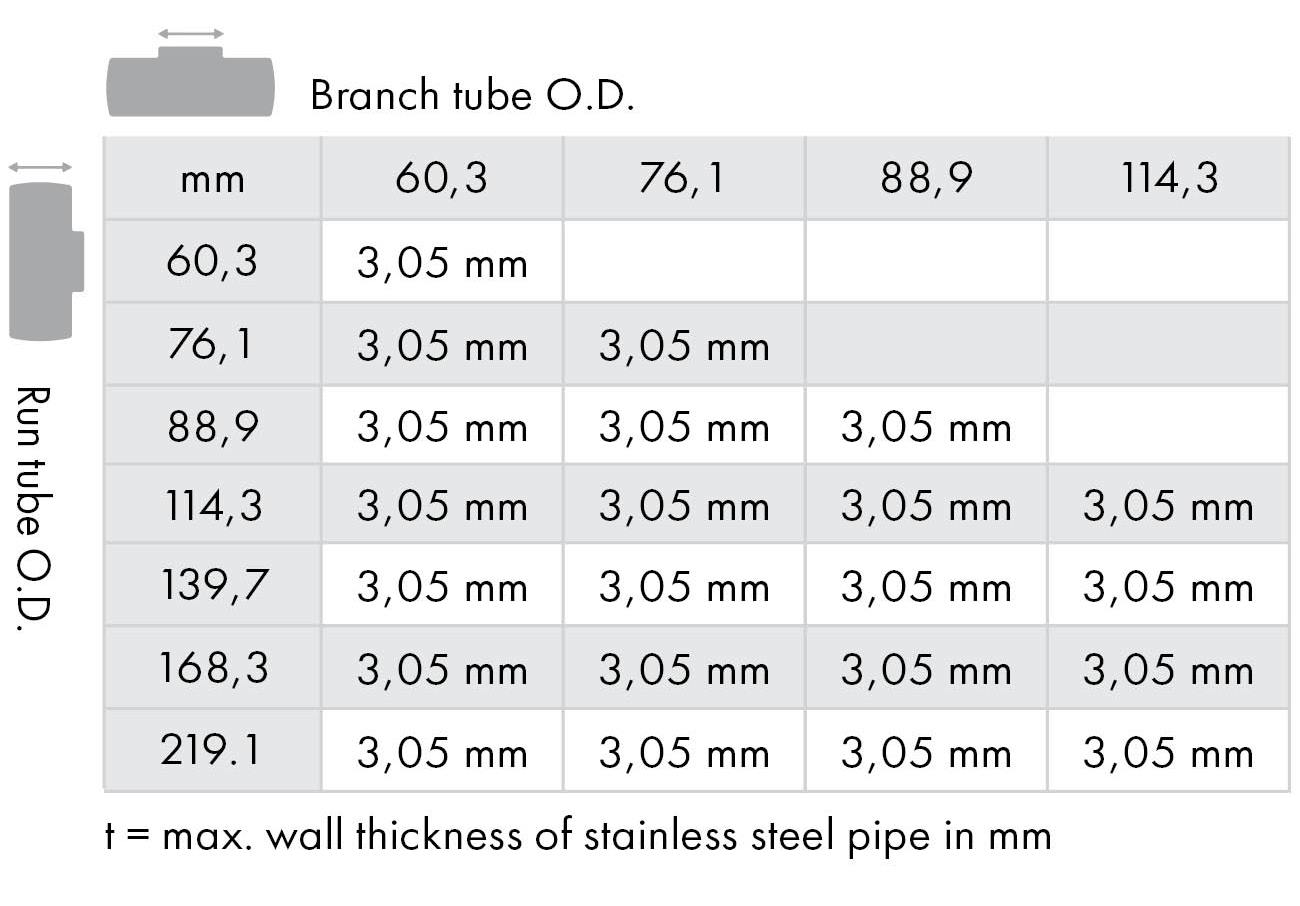

Capacity Chart for Maximum Run Tube Wall Thickness (run tube size on the left and branch size on the top)

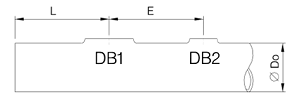

The distance between collars
Distance from the pipe end Lmin:
Collar size ≤ 100 mm
L min = 89 mm
Collar size > 100 mm
L min 135 mm
Minimum distance between collars E min:
Collar size ≤ 100 mm
Do ≤ 139,7 mm
E min = 101 mm
Collar size ≤ 100 mm
141 mm ≤ Do ≤ 219,1 mm
E min = 115 mm
Collar size > 100 mm
E min = 135 mm
