HFT-2000 SS Manifold Fabricating Machine for Stainless Steel
T-DRILL HFT-2000 SS is a semiautomatic unit to be used in conjunction with T-DRILL T-65 SS tee forming machine for small volume stainless steel manifold production. Hand Feed Table is capable for producing tees ½’’ NPS – 1½’’ NPS in run pipes 1″ – 4″NPS.
T-DRILL tees give the most reliable tube joints being used with the most extreme applications.

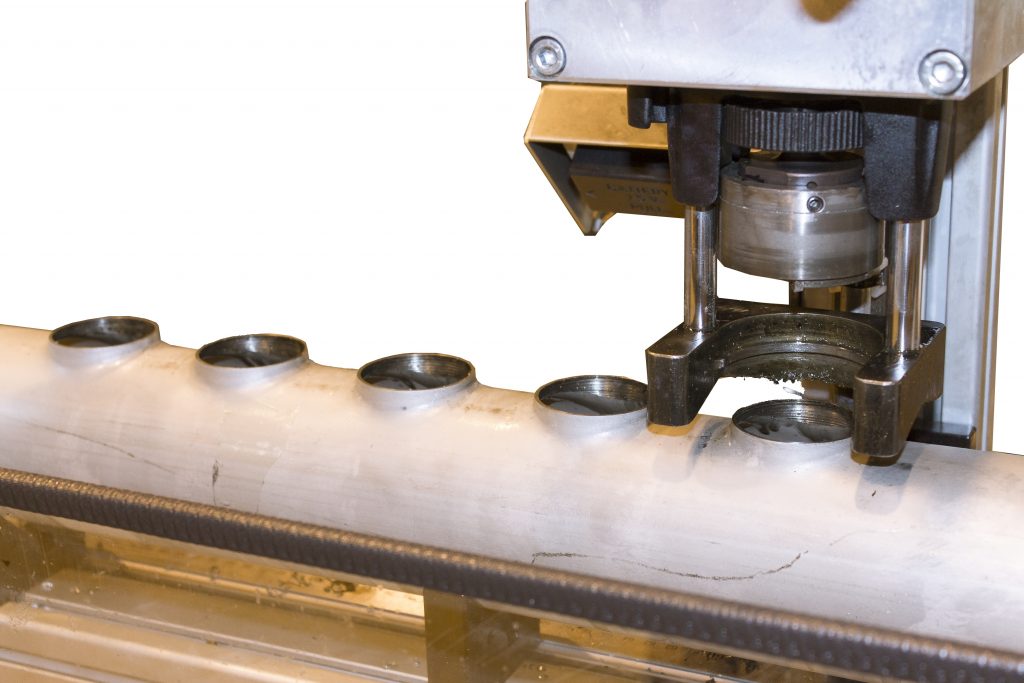

The tee forming unit is manually moved by the operator after each tee is produced. Based on easy “pin-to-hole positioning” it is very productive on standard manifold production. To make the process even easier, there is also an optional digital measuring display available.
Produce five collars in less than ten minutes without moving the tube!
Technical Information

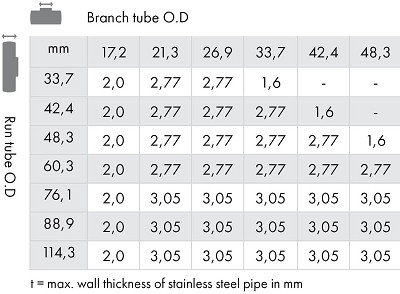

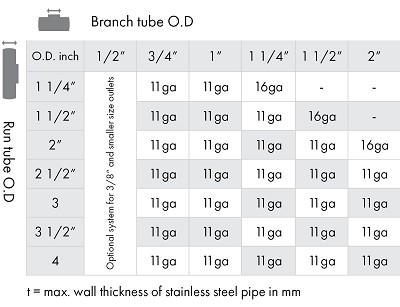

Capacity Chart for Maximum Run Tube Wall Thickness (run tube size on the left and branch size on the top)
