S-54 AFT Automatic Feed Table

S-54 AFT Automatic Feed Table

Nhà sản xuất:T-DRILL Industries Inc

Mã sản phẩm:

Xuất xứ:Finland

Bảo hành:12 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
  • Thông số của sản phẩm
  • Collar sizes
     :
    6–54 mm / ¼” – 2⅛”
  • Run tube sizes
     :
    8–108 mm / 5⁄16” – 4 1⁄8”
  • Pipe material
     :
    Aluminium, Brass, Copper, Copper / Nickel, Stainless steel, Steel
  • Mô tả sản phẩm

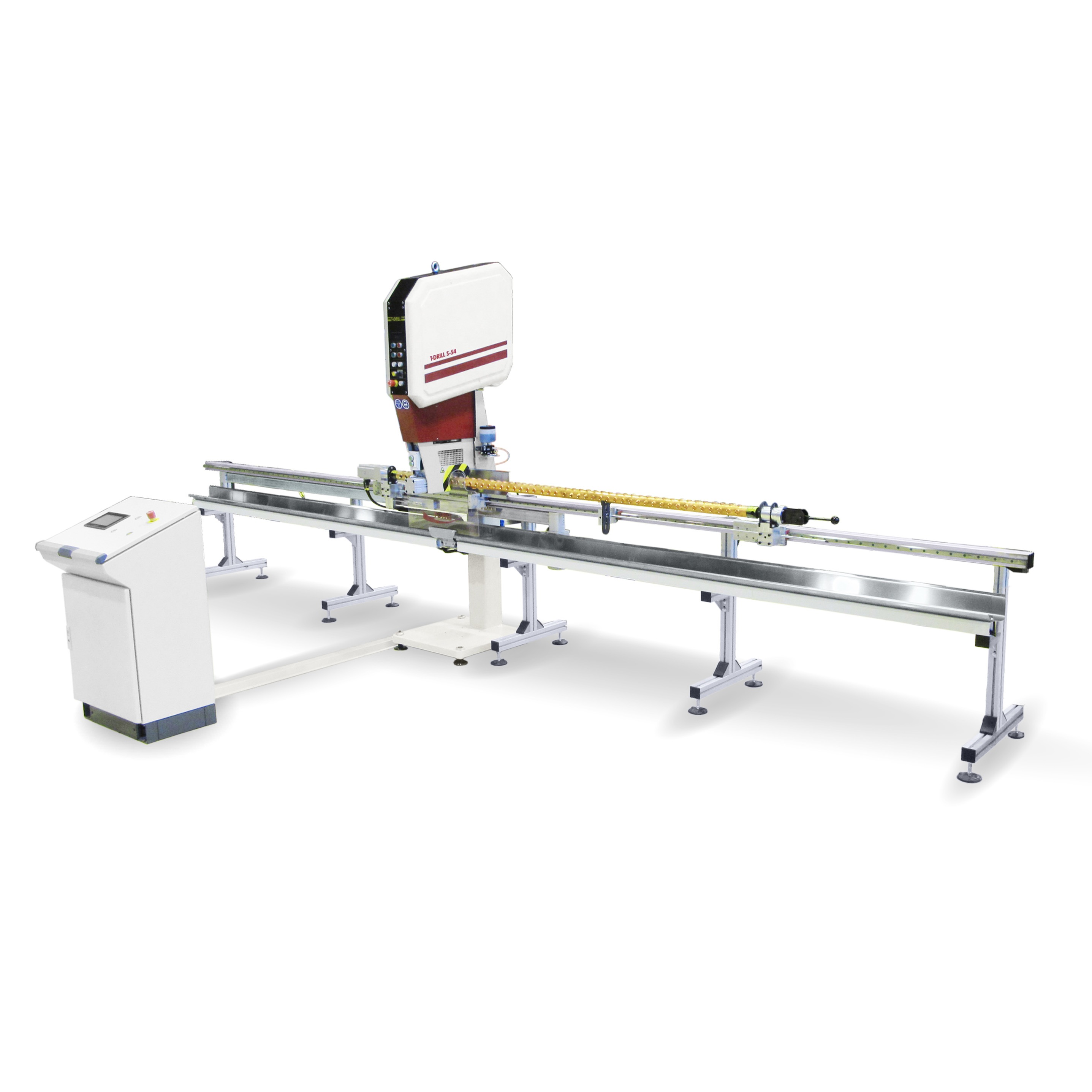

  • S-54 Collaring machine with Automatic Feed Table (AFT) provides a collaring solution for making collars (manifolds, headers) within range ¼” – 2⅛”automatically.

    Using a touch-screen for input, the T-DRILL ProUser Interface provides on screen prompts to guide the operator through the programming process.

    Up to 300 different programs can be stored with each program containing as many as 300 steps. They can be stored as templates to be modified later or completely re-written. These programs can include steps to allow the operator to perform actions on the part not related to the T-DRILL process and then continue. Programs can be written, edited and stored on external workstations and moved to the T-DRILL ProUser Interface when needed.,/p>

    The standard lengths for automatic feed tables are for maximum tubes of 59”, 95” and 118”. Other lengths are available on request.

    • The run tube diameter for each table lengths is 5/16” – 4⅛”
    • Collaring range ¼” – 2⅛” (copper and aluminum)
    • Collaring range ⅜” – 2⅛” (mild and stainless steel)
    • Minimum tube length 2”

    Applications

    Typical use for the S-54 with AFT can be found from Air-conditioning, floor-heating and solar panel manifold applications. T-DRILL Collaring method dramatically improves quality of tube joints. It also makes brazing operation easy to carry out since collar fastens the branch tube to correct position – thus allowing brazing without other fixtures.

    In the below video there is a version with two S-54 collaring units in one AFT.

    Working cycle

    • 1. The tube is fastened to the tube carriage
    • 2. A suitable collaring program is selected from the NC controls
    • 3. Automatic cycle is started
    • 4. When all collars are done, head stock moves back to the loading position
    • 5. Operator change the tube and repeat the program by starting NC-cycle or select a new program

    Cycle time depends on number and size of collars as well as material used. As an example, it will take 65 seconds to produce 10 outlets 5/16” in diameter spaced 4” apart in a copper manifold 60” in length.

    Technical information of S-54

    S-54 Collaring of Copper, Aluminium and Brass Collaring of Steel Collaring of Stainless Steel
    Supply voltage 200-240 V / 50 Hz /60 Hz, 3-phase
    400-480 V / 50 Hz /60 Hz, 3-phase
    Collaring range Ø6–54 mm / / 1⁄4” - 2 1⁄8” Ø10–54 mm / / 3⁄8” - 2 1⁄8” Ø10–54 mm / 3⁄8” - 2 1⁄8”
    Diameter of run tube Ø8–108 mm / 5⁄16” - 4 1⁄8” Ø10–108 mm / 3⁄8” - 4 1⁄8” Ø10–108 mm / 3⁄8” - 4 1⁄8”
    Spindle speed 190–1000 rpm 150–1050 rpm 60–890 rpm
    Rated power 3 kW 3 kW 3 kW
    Compressed air supply 6 bar / 90 psi 6 bar / 90 psi 6 bar / 90 psi
    Air consumption 50 l/min / 1.765 ft³/min 50 l/min / 1.765 ft³/min 50 l/min / 1.765 ft³/min
    Fuse 3 x 16–63 (min – max) 3 x 16–63 (min – max) 3 x 16–63 (min – max)
    Weight 200 kg / 450 lbs 200 kg / 450 lbs 200 kg / 450 lbs
    Dimensions of the unit 930 x 280 x 1130 mm (DxWxH) 930 x 280 x 1130 mm (DxWxH) 930 x 280 x 1130 mm (DxWxH)
    Noise level <70 dB(A) <70 dB(A) <70 dB(A)

    Note! The values above are intended as a guide only.

    Technical specification of AFT

    AFT Value
    Diameter of the tube to be collared Ø 5/16 - 4⅛"
    Min. length of the tube to be collared 2''
    Max length of the tube to be collared 59'', 95'', 118'' or 236"
    Positioning tolerance between to consecutive collars +/- 0.01''
    Connected power 0.6 kW
    Air consumption 14,8 gal/min

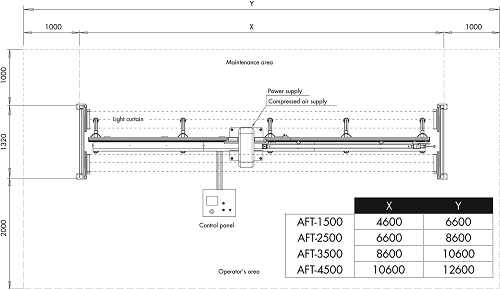

    Dimensions of the unit (AFT 2500) + S-54 116''x260''x91'' (LxWxH)
    Weight (AFT 2500) 992 lbs

    Note! The values above are intended as a guide only.
