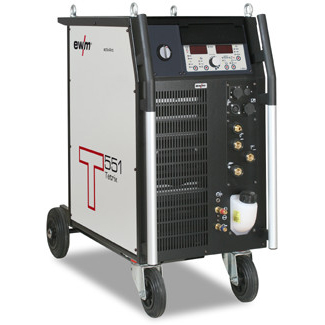

Máy hàn TIG DC - Tetrix 551 Synergic FW

• Water-cooled DC TIG inverter welding machine with one-knob Synergic operation
• Features user database for Synergic operation at no extra charge
• Simple, menu-guided selection of welding tasks from user database
• 256 pre-programmed JOBs/characteristics in the user database
• Features characteristics for EWM activArc and EWM spotArc at no extra charge
• TIG welding with reproducible, electronic HF start
• TIG lift arc welding without HF
• Synergic or manual welding operation
• TIG automated pulsing with automatic specification of required pulse parameters
• Pulsed TIG welding in Hz and kHz range up to 15 kHz
• Large power reserves thanks to high duty cycle with all components heating up less as a result, guaranteeing a longer service life for machines when in use
• Non-latched/latched operation
• Reduced secondary current accessible using torch trigger
• Spot welding/tack function (spotArc/spotmatic)
• Up-slope/down-slope adjustable
• Spotmatic – halves time required for tacking
• Adjustable gas pre-flows/post-flows
• MMA-Welding/gouging
• MMA/gouging, automated pulsing with automatic specification of required pulse parameters
• Ideal for root welding
• Safe, reliable vertical-up and vertical-down welding
• Adjustable hot start current and hot start time
• Adjustable Arcforce
• Antistick function
• Excellent torch cooling, resulting in cost savings on consumables due to high-performance centrifugal pump and 12-litre water tank
• Energy-saving thanks to high efficiency and standby function
• Connection capability for remote control and function torch
• Crane-liftable casing
• Can be optionally networked with LAN or WiFi and EWM Xnet software

Technical data

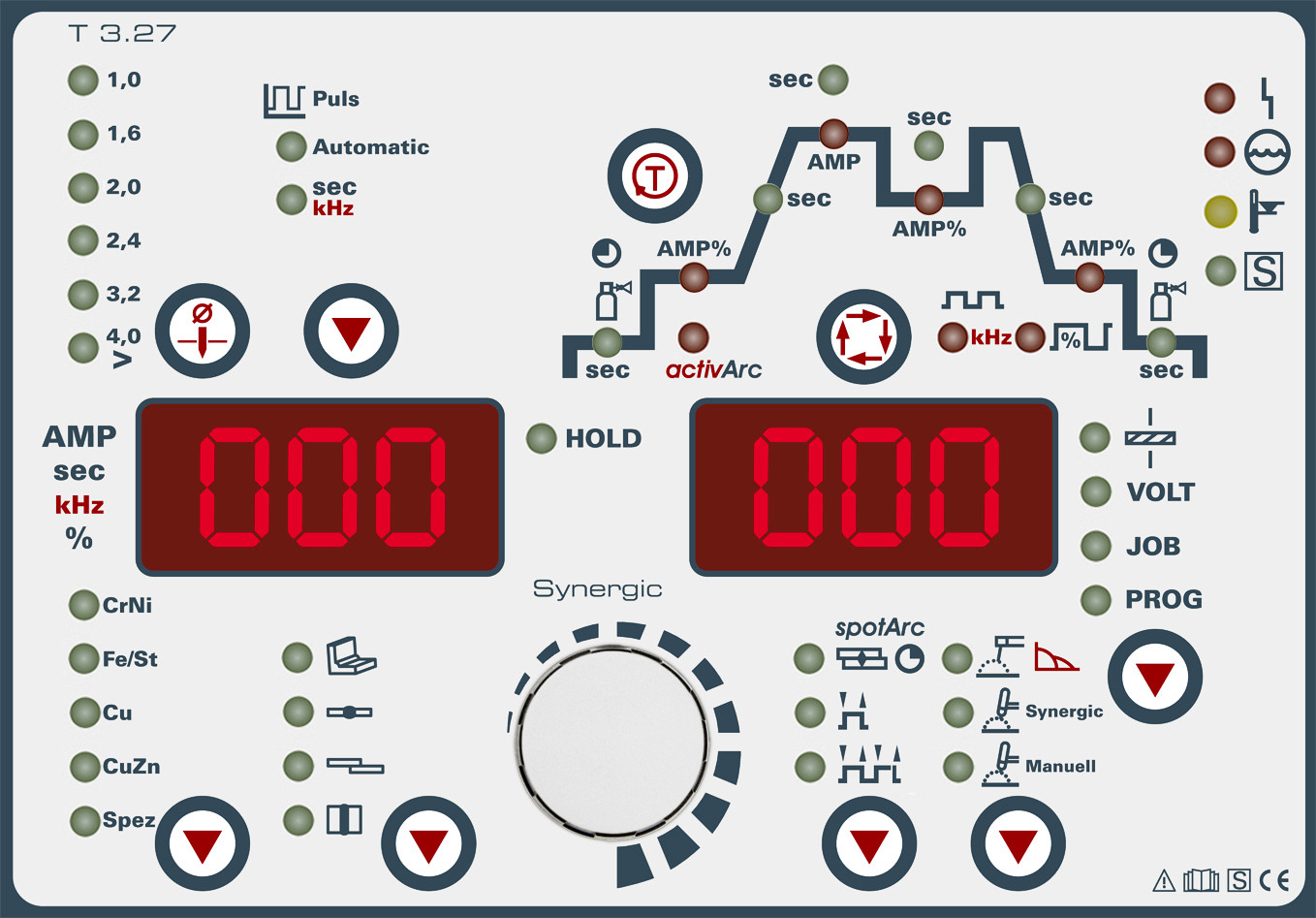

Control

• Synergic one-knob operation: The operating point can be set with a single knob thanks to easy JOB (welding task) preselection
• Selection and display of the welding task (JOB) via LED user guidance
• Reproducible setting of all welding parameters via digital display
