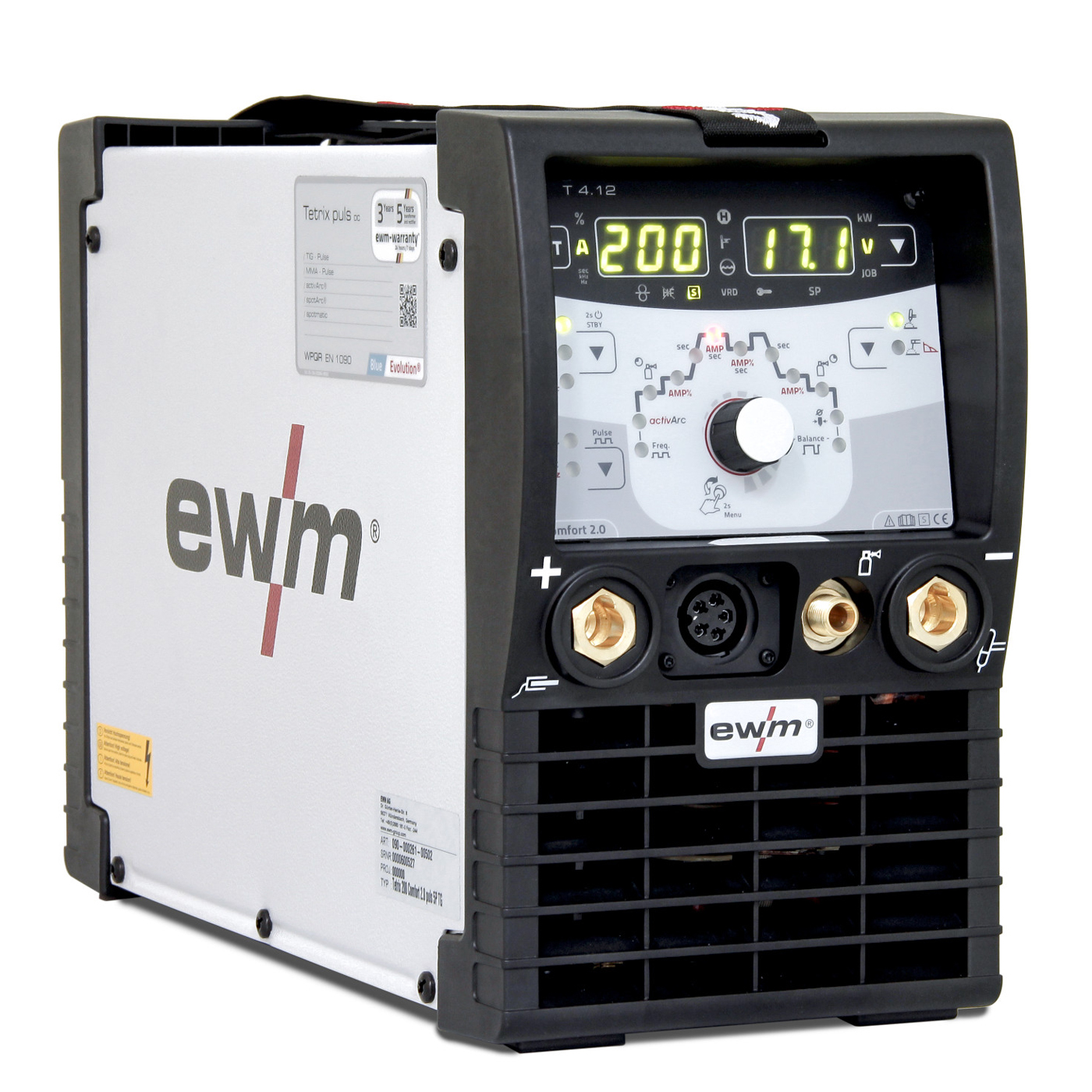

Máy hàn TIG DC: Tetrix 200 DC Comfort 2.0 puls 8P

• Gas-cooled DC TIG inverter welding machine
• TIG welding
• Features characteristics for EWM activArc and EWM spotArc at no extra charge
• Electronic HF start
• TIG lift arc welding without HF
• TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
• Adjustable pulse frequency and balance
• Non-latched/latched operation
• Reduced secondary current accessible using torch trigger
• Spot welding/tack function (spotArc/spotmatic)
• Adjustable up-slope and down-slope time
• Adjustable gas pre- and post-flow time
• MMA welding
• MMA average value pulsing
• Adjustable hot start current and hot start time
• Adjustable Arcforce
• Antistick function
• Highlights
• Energy-saving thanks to high efficiency and standby function
• Connection capability for remote control and function torch
• 3.5 m mains supply lead with 16 A shock-proof plug
• Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

Technical data

Setting range for welding current	5 A - 200 A
Duty cycle 40 °C	200 A / 25 %
	150 A / 60 %
	140 A / 100 %
Open circuit voltage	63 V
Mains voltage	1 x 230 V
Tolerances	-40 % up to +15 %
Mains frequency	50 Hz / 60 Hz
Recommended generator power	8.1 kVA
Torch connection	Burndy, 8-polig
Protection classification	IP23
Safety marking
EMC class	A
Dimensions (L x B x H)	428 mm x 181 mm x 294 mm
	16.85 Zoll x 7.126 Zoll x 11.575 Zoll
Weight	10 kg
	22.05 lbs
Standards	IEC 60974-1, -3, -10 CL.A

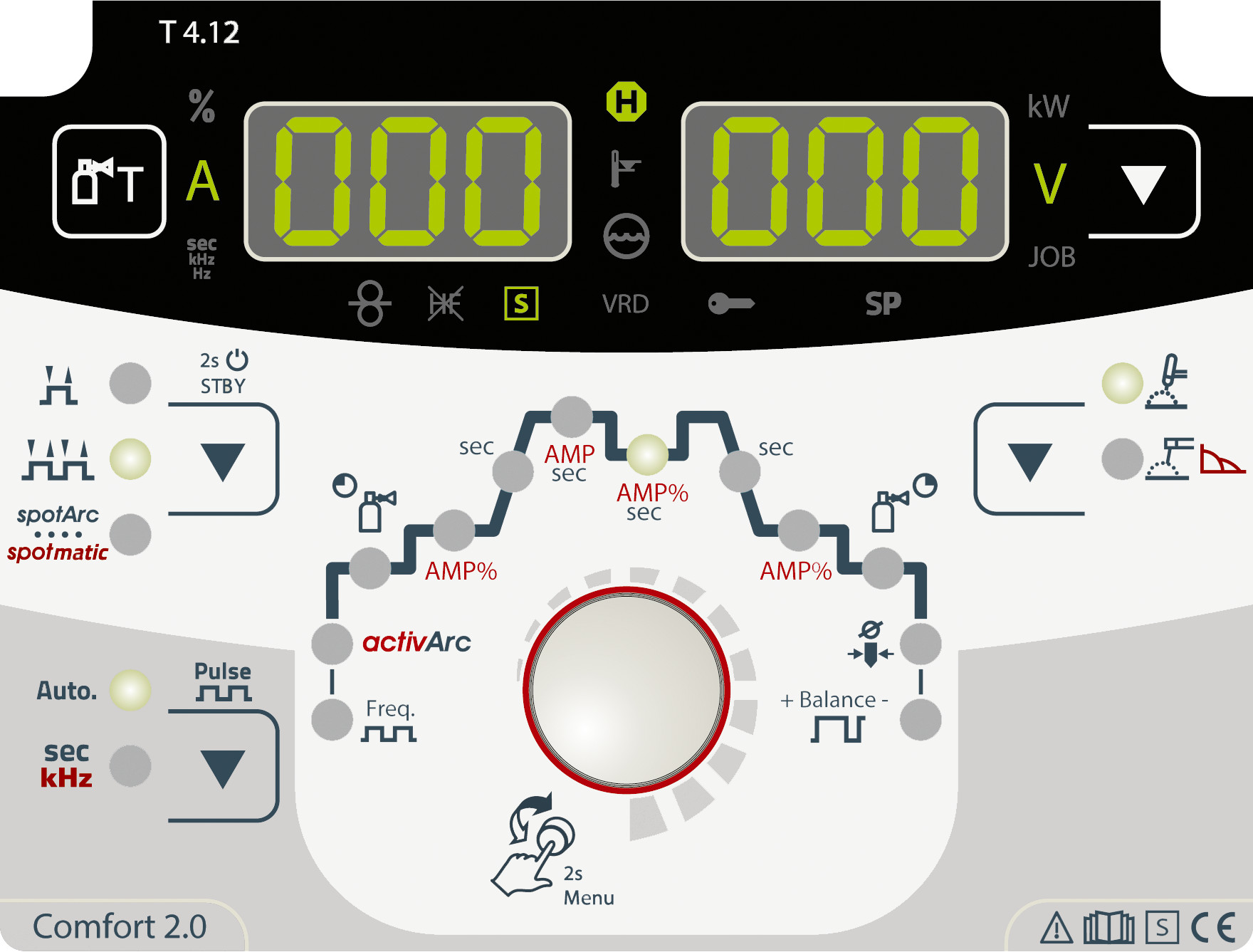

Control

• One-knob operation
• Welding sequence selection and parameter setting using click wheel or conventional operation with sequence buttons (back/forward)
• Expert menu for advanced welding parameter settings
• Welding sequence parameter setting
• Start, welding, secondary and end current
• Up-slope/down-slope time
• Gas pre- and post-flow time
• Electrode diameter
• Welding sequence parameters set with LED user guidance
• Start, welding, secondary and end current
• Pulse time and pulse pause time with corresponding slope times
• Up-slope/down-slope time
• Gas pre- and post-flow time
• Electrode diameter
