Máy hàn TIG DC: Tetrix 200 DC MV Comfort 2.0 puls 5P

• Gas-cooled DC TIG inverter welding machine
• Multivolt (MV): Can be used worldwide thanks to automatic adjustment of mains voltage (115 V/230 V)
• TIG welding
• Features characteristics for EWM activArc and EWM spotArc at no extra charge
• Electronic HF start
• TIG lift arc welding without HF
• TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
• Adjustable pulse frequency and balance
• Non-latched/latched operation
• Reduced secondary current accessible using torch trigger
• Spot welding/tack function (spotArc/spotmatic)
• Adjustable up-slope and down-slope time
• Adjustable gas pre- and post-flow time
• MMA welding
• MMA average value pulsing
• Adjustable hot start current and hot start time
• Adjustable Arcforce
• Antistick function
• Highlights
• Energy-saving thanks to high efficiency and standby function
• Connection capability for remote control and function torch
• 3.5 m mains supply lead with 16 A shock-proof plug
• Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

Technical data

Setting range for welding current	5 A - 5 A - 150 A200 A
Duty cycle 40 °C	150 A / 35 %
	120 A / 60 %
	100 A / 100 %
	200 A / 25 %
	150 A / 60 %
	140 A / 100 %
Open circuit voltage	90 V
Mains voltage	1 x 115 V
Tolerances	-15 % up to +15 %
Mains frequency	50 Hz / 60 Hz
Recommended generator power	6 kVA8 kVA
Protection classification	IP23
Safety marking
EMC class	A
Weight	10.8 kg
	10.8 kg

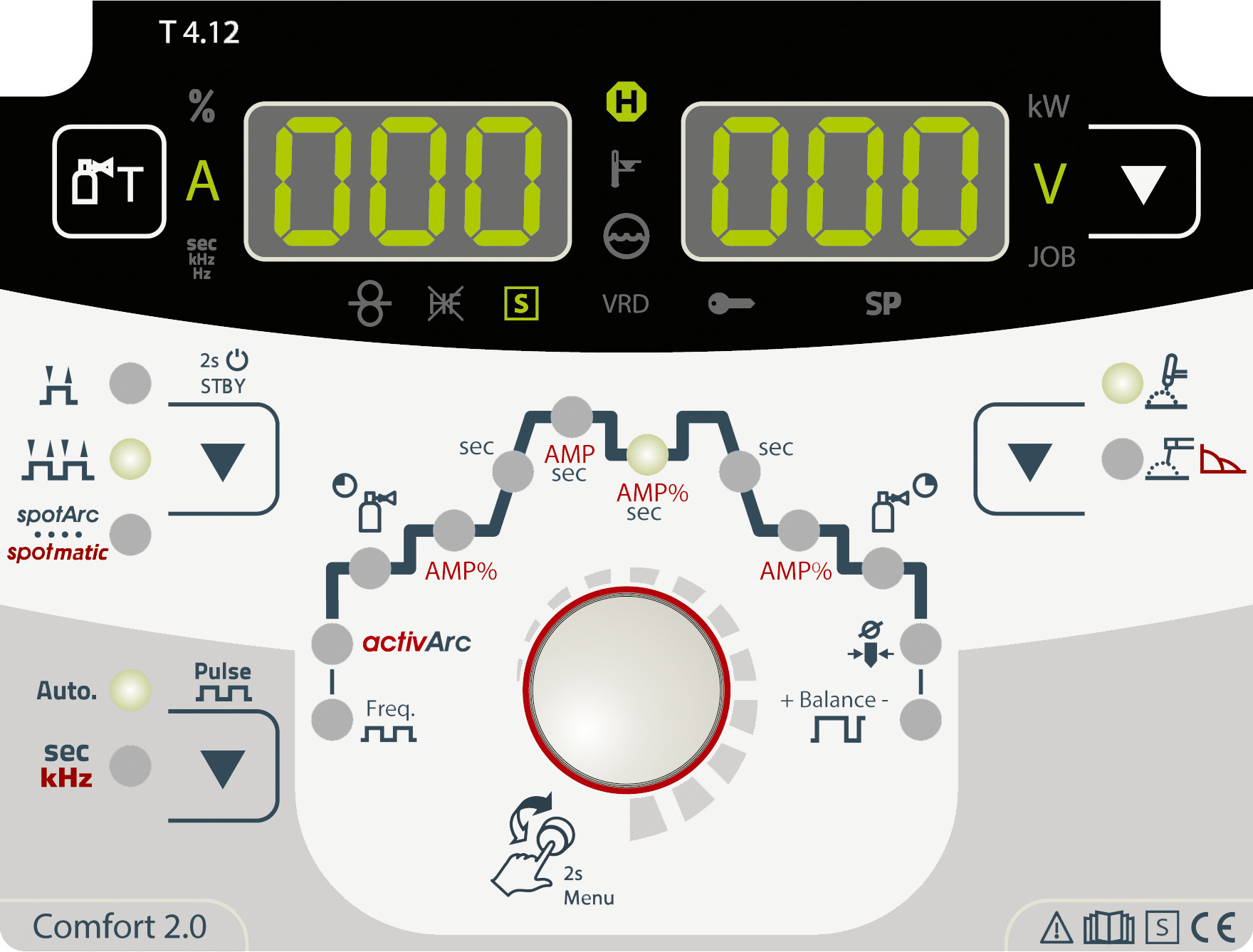

Control

• One-knob operation
• Welding sequence selection and parameter setting using click wheel or conventional operation with sequence buttons (back/forward)
• Expert menu for advanced welding parameter settings
• Welding sequence parameter setting
• Start, welding, secondary and end current
• Up-slope/down-slope time
• Gas pre- and post-flow time
• Electrode diameter
• Welding sequence parameters set with LED user guidance
• Start, welding, secondary and end current
• Pulse time and pulse pause time with corresponding slope times
• Up-slope/down-slope time
• Gas pre- and post-flow time
• Electrode diameter
