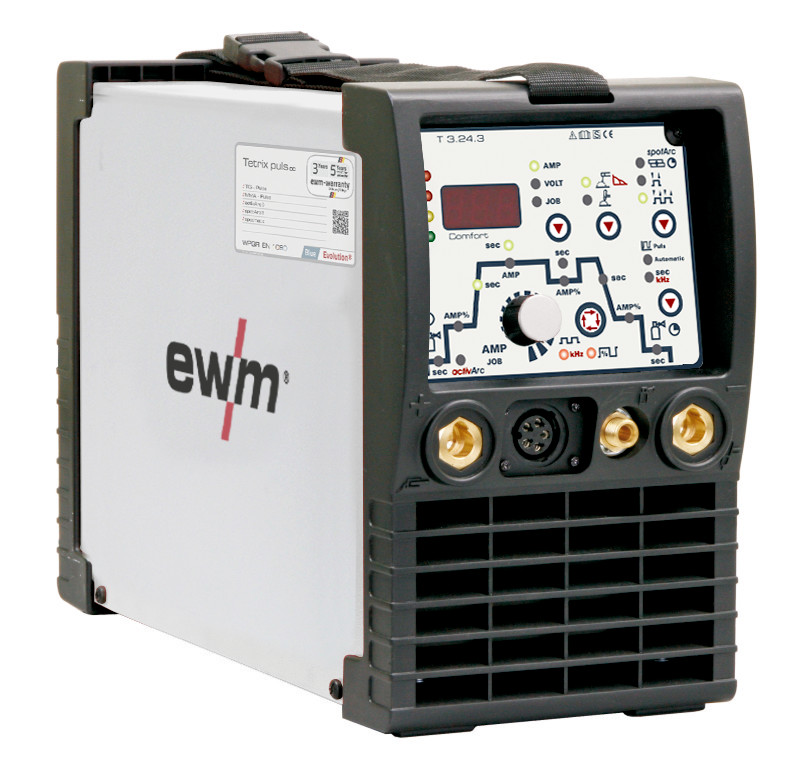

Máy hàn TIG DC: Tetrix 200 Comfort puls 5P TG

Nhà sản xuất:EWM

Mã sản phẩm:

Xuất xứ:Germany

Bảo hành:36 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Catalogue sản phẩm

Gas-cooled DC TIG inverter welding machine
Features characteristics for EWM activArc and EWM spotArc at no extra charge
TIG welding with reproducible, electronic HF start
TIG lift arc welding without HF
TIG automated pulsing with automatic specification of required pulse parameters
Pulsed TIG welding in Hz and kHz range up to 15 kHz
8 programmed JOBs (welding tasks)
Non-latched/latched operation
Clearly structured operating panel, operating elements streamlined to feature the main TIG functions
Reduced secondary current accessible using torch trigger
Spot welding/tack function (spotArc/spotmatic)
Up-slope/down-slope adjustable
Spotmatic – halves time required for tacking
Adjustable gas pre-flows/post-flows
MMA welding
MMA average value pulsing
Ideal for root welding
Safe, reliable vertical-up and vertical-down welding
Adjustable hot start current and hot start time
Adjustable Arcforce
Antistick function
Safe ignition also for long hose packages
Energy-saving thanks to high efficiency and standby function
Portable, including shoulder strap
Connection capability for remote control and function torch
3.5 m mains supply lead with 16 A shock-proof plug
Mains connection 230 V/16 A
High mains voltage tolerance +15%/-40% and therefore fully generator-compatible
3.5 m mains lead with 16 A earthed plug
Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

Technical data

	TIG		MMA
Setting range for welding current	5 A - 200 A		5 A - 150 A
Duty cycle at ambient temperature	40 °C	25 °C	40 °C	25 °C
25 %	200 A		–
35 %	–		150 A
60 %	150 A		120 A
100 %	120 A		100 A
Open circuit voltage	63 V
Mains fuses (slow-blow)	1 x 16 A
Mains voltage (tolerances)	1 x 230 V (-40 % - +15 %)
Max. connected load	6 kVA		6.4 kVA
Recommended generator power	8.1 kVA		8.6 kVA
cos φ	0.99
Efficiency	86 %
Dimensions machine, LxWxH in mm	431 x 181 x 294
Weight, machine	10.2 kg
Torch connection	Decentral

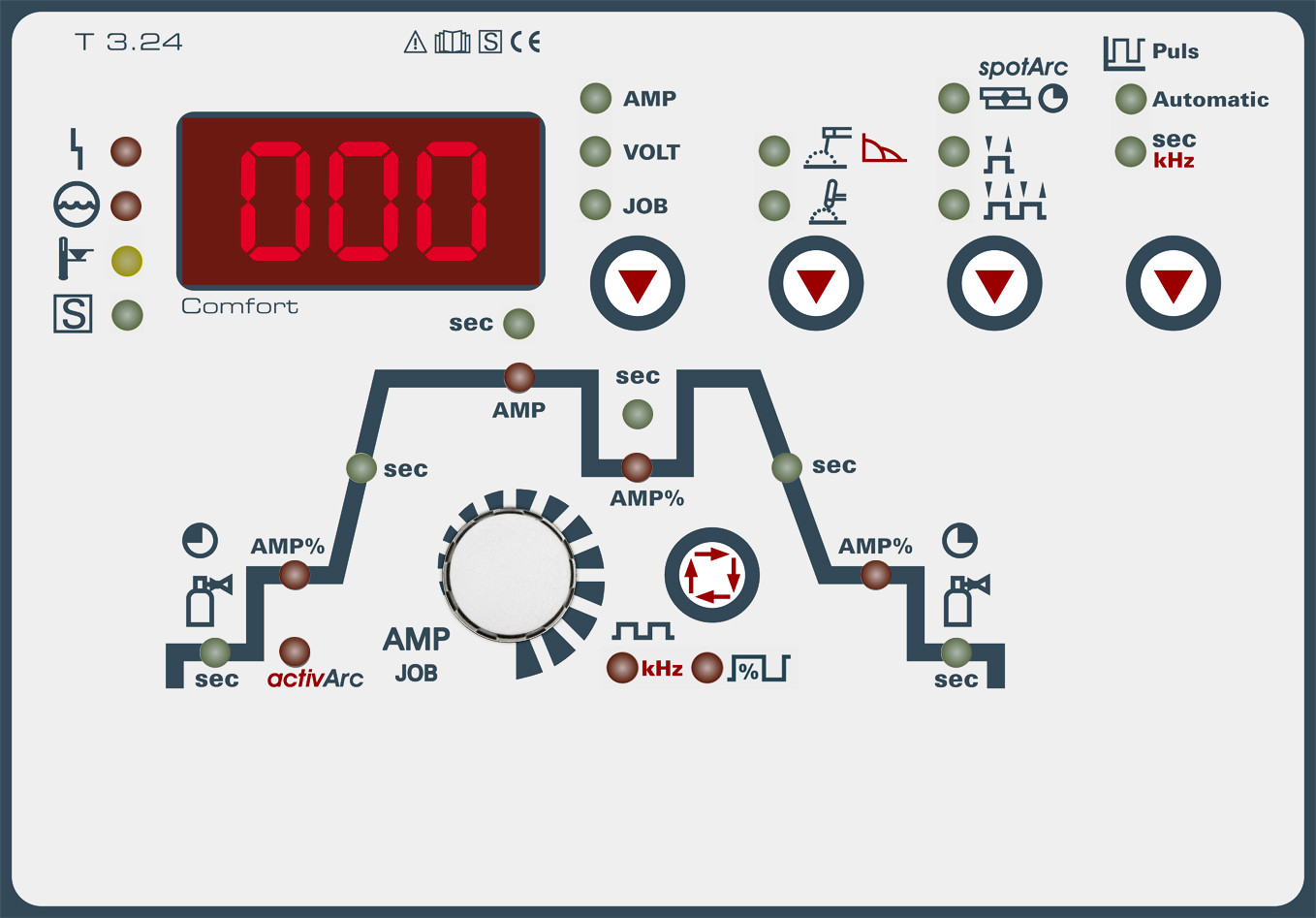

Control

All parameters can be set via the user menu, 8 JOBs (welding tasks) can be programmed
Reproducible setting of all welding parameters with digital display

Welding process	TIG , EWM-activArc , EWM-spotArc , MMA
Ignition options	HF , Liftarc
E-Hand-Funktionen	Hotstart , Arcforce , Antistick
Pulse type	kHz pulses
Parameters in display	Welding current , Welding parameters , Welding voltage , JOB number
Operating modes	Non-latched
	Gas pre-flow time
