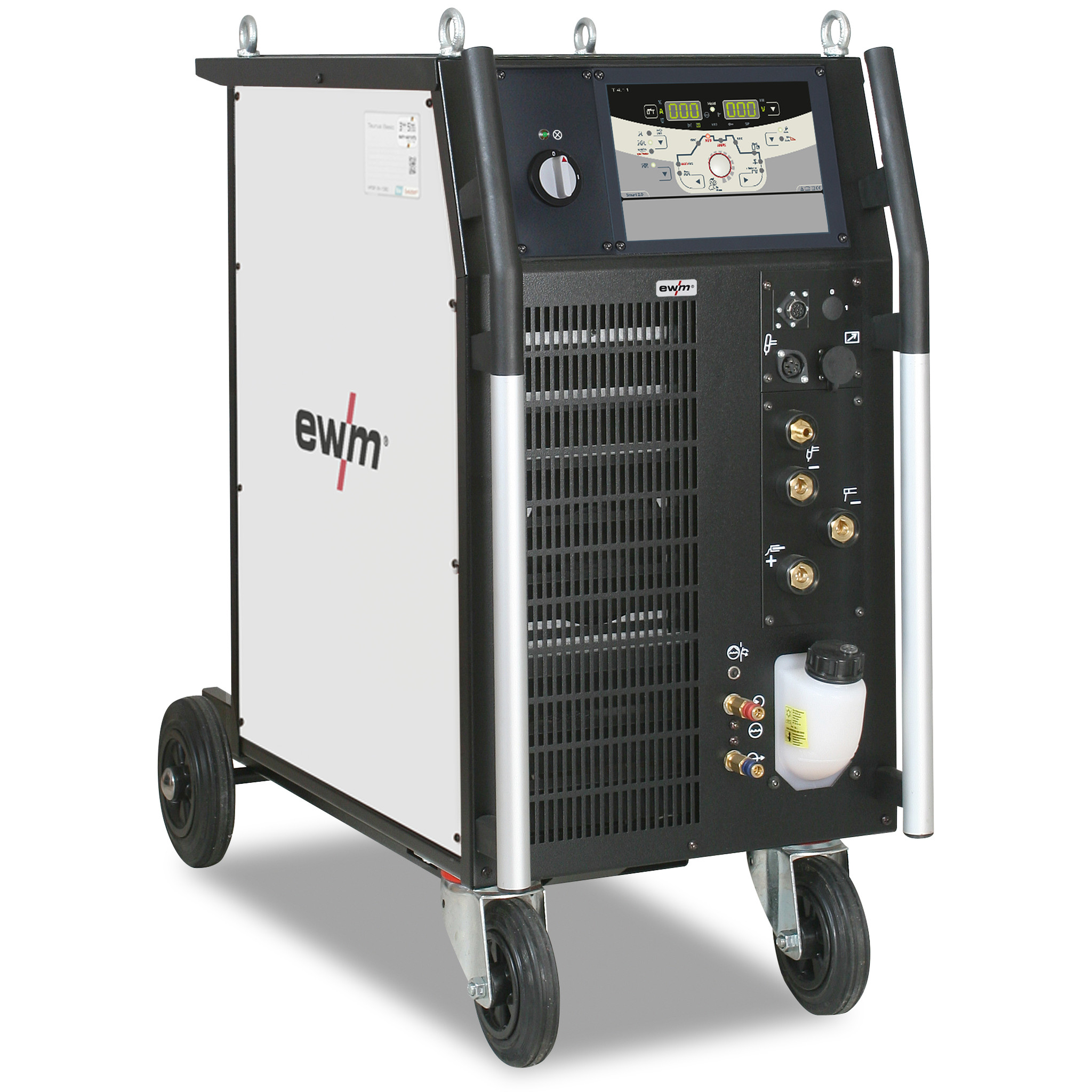

Máy hàn TIG DC : Tetrix 351 DC Comfort 2.0 puls

Nhà sản xuất:EWM

Mã sản phẩm:

Xuất xứ:Germany

Bảo hành:36 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Catalogue sản phẩm

Product Data Sheet

Thông số của sản phẩm
Setting range for welding current

:

5 A - 350 A

Mô tả sản phẩm

Water-cooled DC TIG inverter welding machine
Comfort 2.0 control, simple operation with click wheel
TIG welding
Features characteristics for EWM activArc and EWM spotArc at no extra charge
TIG welding with reproducible, electronic HF start
TIG lift arc welding without HF
TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
TIG automated pulsing with automatic specification of required pulse parameters
Pulsed TIG welding in Hz and kHz range up to 15 kHz
8 programmed JOBs (welding tasks)
Non-latched/latched operation
Reduced secondary current accessible using torch trigger
Spot welding/tack function (spotArc/spotmatic)
spotmatic and spotArc with direct access
Up-slope/down-slope adjustable
Spotmatic – halves time required for tacking
Adjustable gas pre-flows/post-flows
MMA-Welding/gouging
MMA/gouging, automated pulsing with automatic specification of required pulse parameters
Ideal for root welding
8 programmed JOBs (welding tasks)
Safe, reliable vertical-up and vertical-down welding
Adjustable hot start current and hot start time
Adjustable Arcforce
Antistick function
Highlights
Excellent torch cooling, resulting in cost savings on consumables due to high-performance centrifugal pump and 12-litre water tank
Energy-saving thanks to high efficiency and standby function
Connection capability for remote control and function torch
Crane-liftable casing
Can be optionally connected to LAN or WiFi. Xnet-compatible
PC interface for PC300.Net software

Technical data

	TIG		MMA
Setting range for welding current	5 A - 350 A
Duty cycle at ambient temperature	40 °C	25 °C	40 °C	25 °C
100 %	350 A
Open circuit voltage	79 V
Mains frequency	50 Hz / 60 Hz
Mains fuses (slow-blow)	3 x 25 A
Mains voltage (tolerances)	3 x 400 V (-25 % - +20 %)
Max. connected load	10.9 kVA		15.4 kVA
Recommended generator power	14.7 kVA		20.8 kVA
cos φ	0.99
Efficiency	90 %
Dimensions machine, LxWxH in mm	1085 x 680 x 1003

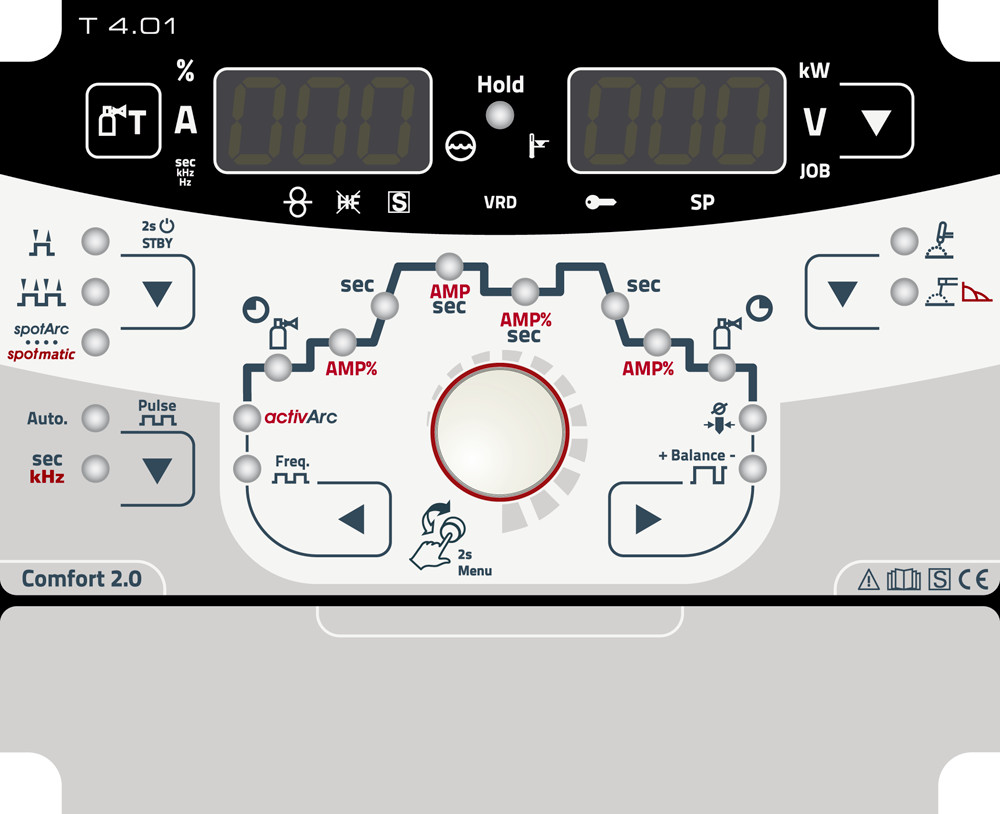

Control

One-knob operation
Welding sequence selection and parameter adjustment via click wheel or with the classic method via sequence buttons (forward/back)
Features characteristics for EWM activArc and spotArc at no extra charge
Expert menu for advanced welding parameter adjustments
TIG-welding, TIG pulses, TIG lift arc welding, HF ignition, MMA welding, MMA pulse welding
Adjustable welding parameters and functions
TIG welding
Pulsed TIG welding in Hz and kHz range up to 15 kHz
TIG automated pulsing with automatic specification of required pulse parameters
Pulse frequency
Balance, pulse balance
Metallurgical average value pulses (DC)
8 programmed JOBs (welding tasks)
Operating modes: Non-latched, latched
Spot welding/tack function (spotArc/spotmatic)
spotmatic and spotArc with direct access
Up-slope/down-slope
Gas test, flushing
MMA welding
Automated MMA pulsing
Metallurgical average value pulses (DC)
Pulsed frequency welding
Antistick function
Hot start current and hot start time
Adjustable Arcforce (except Tetrix 230)
Welding polarity switchover
8 programmed JOBs (welding tasks)
Welding procedure parameters set with LED user guidance
Start, welding, secondary and end current
Pulse time and pulse pause time with corresponding slope times
Up-slope/down-slope time
kHz pulses: balance, frequency
Gas pre- and post-flow time
Electrode diameter
Digital welding data display with hold function
Welding current
Welding voltage
Welding parameters
Welding power
JOB number
