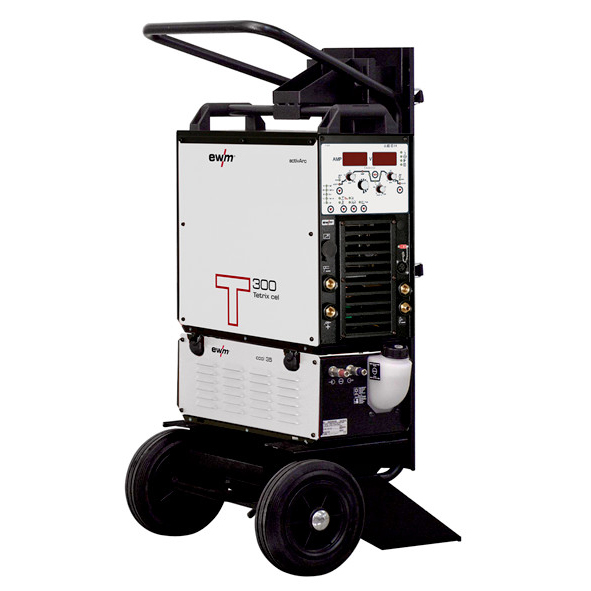

Máy hàn TIG DC: Tetrix 300 Classic TM

Nhà sản xuất:EWM

Mã sản phẩm:

Xuất xứ:Germany

Bảo hành:36 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Catalogue sản phẩm

Thông số của sản phẩm
Setting range for welding current

:

5 A - 300 A

Mô tả sản phẩm

Modular DC TIG inverter welding machine, gas- or water-cooled
Features characteristics for EWM activArc and EWM spotArc at no extra charge
TIG welding with reproducible, electronic HF start
TIG lift arc welding without HF
Non-latched/latched operation
Clearly structured operating panel, operating elements streamlined to feature the main TIG functions
Key functions can be adjusted conventionally using a potentiometer and rotary transducer
TIG pulse function
Reduced secondary current accessible using torch trigger
Spot welding/tack function (spotArc/spotmatic)
Up-slope/down-slope adjustable
Spotmatic – halves time required for tacking
Adjustable gas pre-flows/post-flows
MMA welding
MMA average value pulsing
Ideal for root welding
Safe, reliable vertical-up and vertical-down welding
Adjustable hot start current and hot start time
Adjustable Arcforce
Antistick function
Safe ignition also for long hose packages
Gas-cooled or optionally water-cooled with cool 35 U31 cooling unit
Excellent torch cooling, resulting in cost savings on consumables due to high-performance centrifugal pump and 4.5-litre water tank (cool 35 U31 cooling unit)
Energy-saving thanks to high efficiency and standby function
High mains voltage tolerances and therefore fully generator-compatible
Connection capability for remote control and function torch
Trolly 35.2-2 trolley available for delivery
Mains connection 3 x 400 V/16 A
Scope of supply includes welding machine only; other components such as trolly and cooling unit can be selected from accessories!

Technical data

	TIG		MMA
Setting range for welding current	5 A - 300 A
Duty cycle at ambient temperature	40 °C	25 °C	40 °C	25 °C
60 %	300 A	–	300 A	–
80 %	–	300 A	–	300 A
100 %	250 A	270 A	250 A	270 A
Open circuit voltage	98 V
Mains frequency	50 Hz / 60 Hz
Mains fuses (slow-blow)	3 x 16 A
Mains voltage (tolerances)	3 x 400 V (-25 % - +20 %)
Max. connected load	8.3 kVA		12.1 kVA
Recommended generator power	11.2 kVA		16.3 kVA
cos φ	0.99
Efficiency	88 %
Dimensions machine, LxWxH in mm	590 x 230 x 380
Weight, machine	29 kg
Torch connection	Decentral

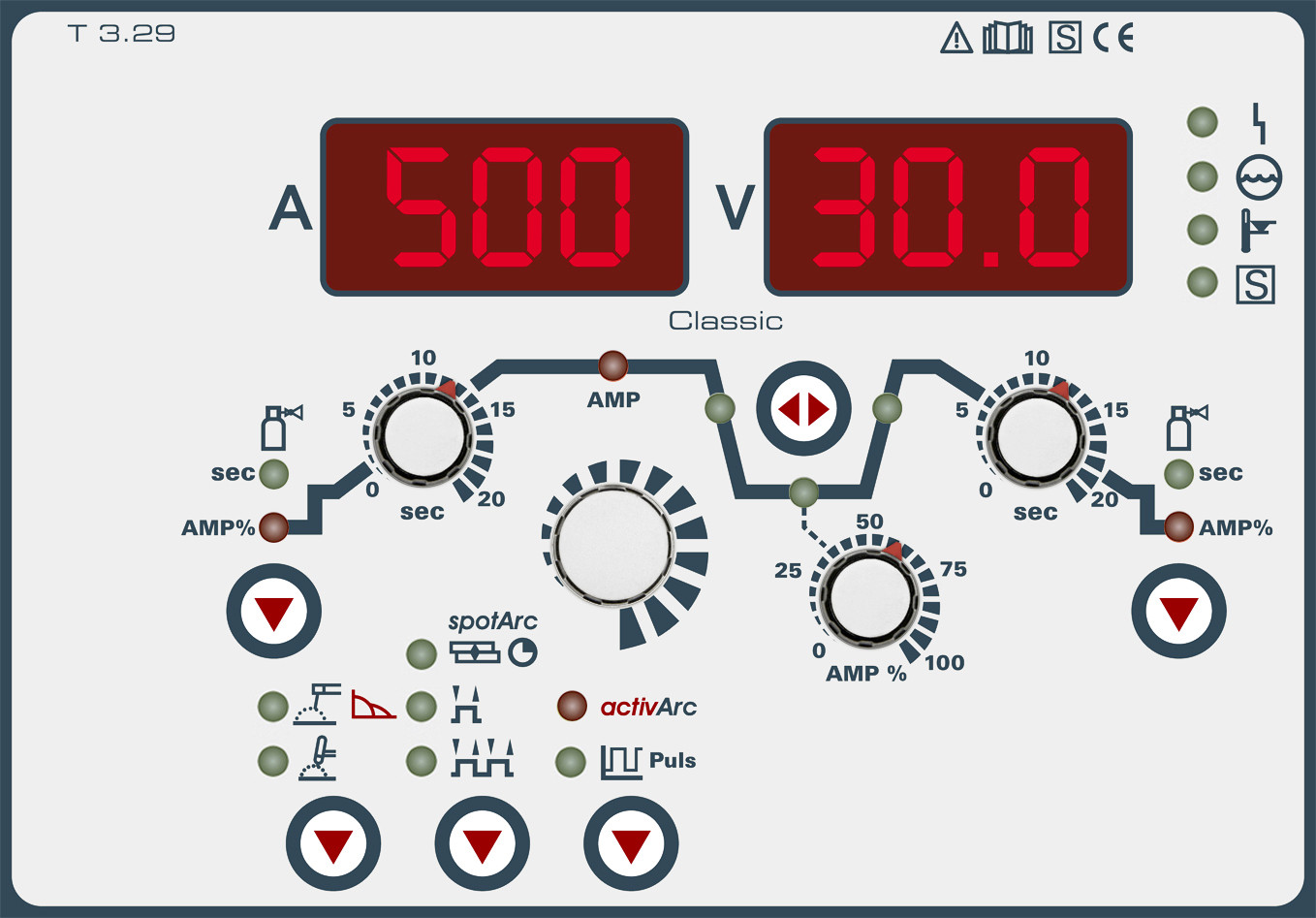

Control

Direct access to all welding parameters via rotary knobs
Reproducible setting of all welding parameters via digital display

Welding process	TIG , EWM-activArc , EWM-spotArc , MMA
Ignition options	HF , Liftarc
E-Hand-Funktionen	Hotstart , Arcforce , Antistick
Parameters in display	Welding current , Welding voltage , Welding parameters
Operating modes	Non-latched
	Gas pre-flow time
