Máy hàn TIG DC: Picotig 200 MV puls TG

Nhà sản xuất:EWM

Mã sản phẩm:

Xuất xứ:Germany

Bảo hành:36 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Catalogue sản phẩm

Gas-cooled DC TIG inverter welding machine
Inverter welding machine, DC, automatic mains voltage adaptation
TIG welding with reproducible, electronic HF start
TIG lift arc welding without HF
MMA pulse welding and pulsed TIG welding up to 2 kHz
Non-latched/latched operation
Clearly structured operating panel, operating elements streamlined to feature the main TIG functions
Reduced secondary current accessible using torch trigger
Up-slope/down-slope adjustable
Adjustable gas pre-flows/post-flows
MMA welding
Adjustable hot start current and hot start time
Adjustable Arcforce
Antistick function
Energy-saving thanks to high efficiency and standby function
Portable, including shoulder strap
3.5 m mains supply lead with 16 A shock-proof plug
Mains connection 230 V/16 A
Multivolt (MV): automatic mains voltage adaptation (115 V/230 V)
Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

Technical data

	TIG	MMA
Setting range for welding current	5 A - 200 A	5 A - 150 A
Duty cycle at ambient temperature	40 °C
25 %	200 A	–
35 %	–	150 A
60 %	150 A	120 A
100 %	140 A	100 A
Open circuit voltage	90 V
Mains frequency	50 Hz / 60 Hz
Mains fuses (slow-blow)	1 x 16 A, Mains fuses (slow-blow) 1 x 25 A
Mains voltage (tolerances)	1 x 230 V (-40 % - +15 %), Mains voltage (tolerances) 1 x 115 V (-15 % - +15 %)
Max. connected load	4.4 kVA	–
Recommended generator power	7.5 kVA	–
cos φ	0.99
Efficiency	86 %
Dimensions machine, LxWxH in mm	428 x 181 x 294
Weight, machine	9.8 kg
Torch connection	Decentral

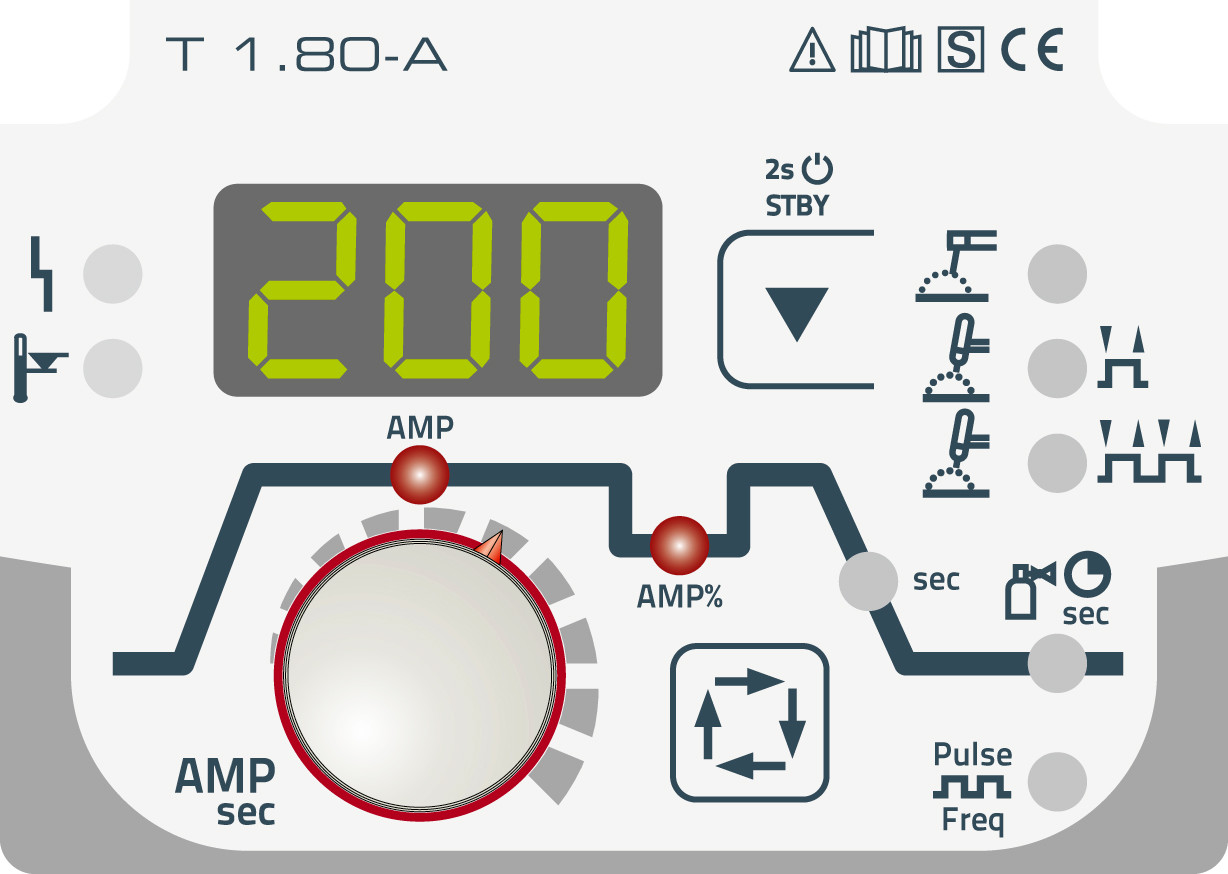

Control

One-knob operation: direct access to the most important TIG parameters
Practical reduction of the operating elements down to the most important functions

Welding process	TIG , MMA
Ignition options	HF , Liftarc
E-Hand-Funktionen	Hotstart , Arcforce , Antistick
Parameters in display	Welding current , Welding parameters
Operating modes	Non-latched
	Gas pre-flow time
