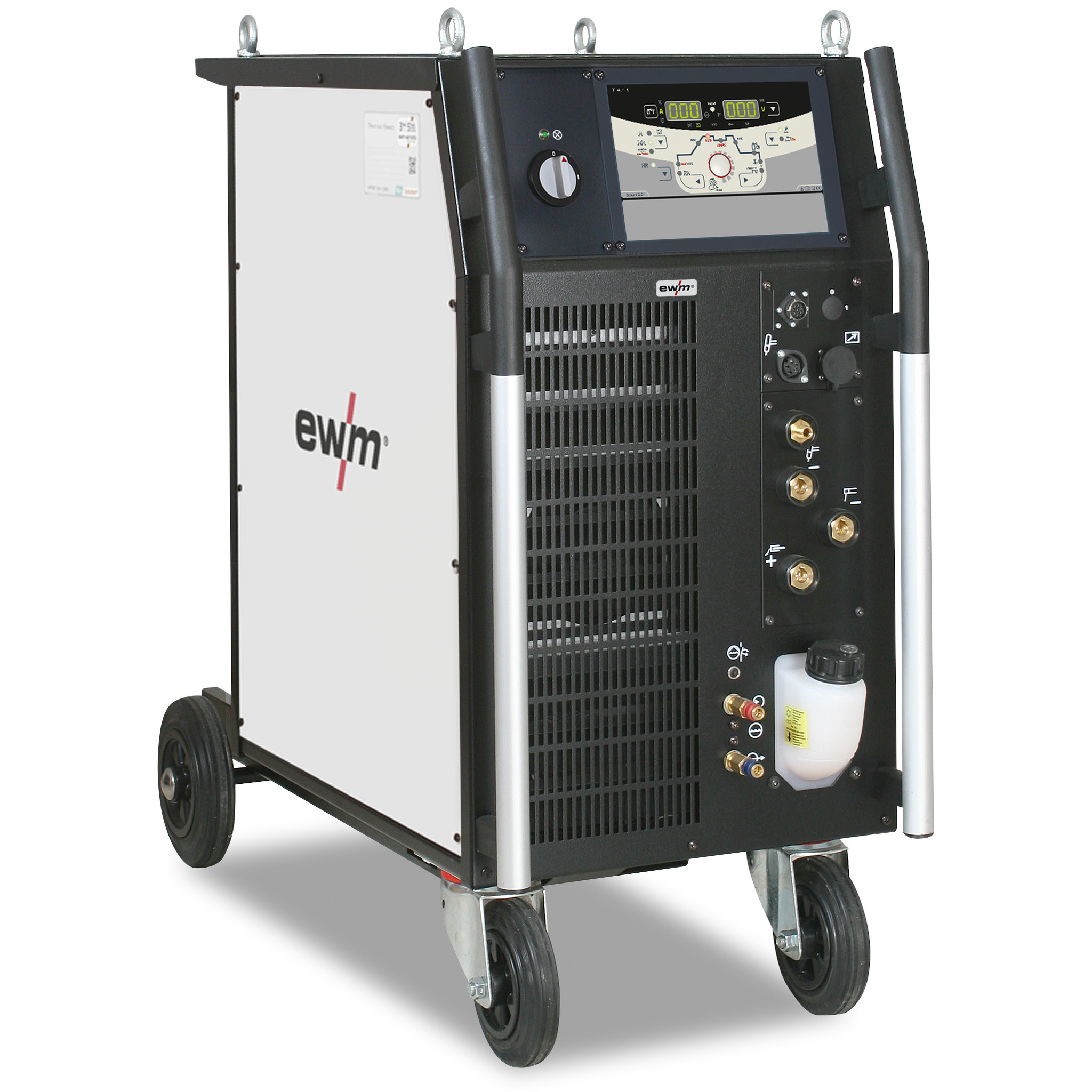

Máy hàn TIG DC - Tetrix 401 DC Smart 2.0 puls

• Water-cooled DC TIG inverter welding machine
• TIG welding
• Features characteristics for EWM activArc and EWM spotArc at no extra charge
• TIG welding with reproducible, electronic HF start
• TIG lift arc welding without HF
• TIG average value pulsing: the preset welding current is maintained at all times, so particularly suitable for welding as per welding procedure specification
• TIG automated pulsing with automatic specification of required pulse parameters
• Large power reserves thanks to high duty cycle with all components heating up less as a result, guaranteeing a longer service life for machines when in use
• Non-latched/latched operation
• Reduced secondary current accessible using torch trigger
• Spot welding/tack function (spotArc/spotmatic)
• spotmatic and spotArc with direct access
• Up-slope/down-slope adjustable
• Spotmatic – halves time required for tacking
• Adjustable gas pre-flows/post-flows
• MMA-Welding/gouging
• MMA/gouging, automated pulsing with automatic specification of required pulse parameters
• Ideal for root welding
• Safe, reliable vertical-up and vertical-down welding
• Adjustable hot start current and hot start time
• Adjustable Arcforce
• Antistick function
• Highlights
• Excellent torch cooling, resulting in cost savings on consumables due to high-performance centrifugal pump and 12-litre water tank
• Energy-saving thanks to high efficiency and standby function
• Connection capability for remote control and function torch
• Crane-liftable casing
• Can be optionally connected to LAN or WiFi. Xnet-compatible
• PC interface for PC300.Net software

Technical data

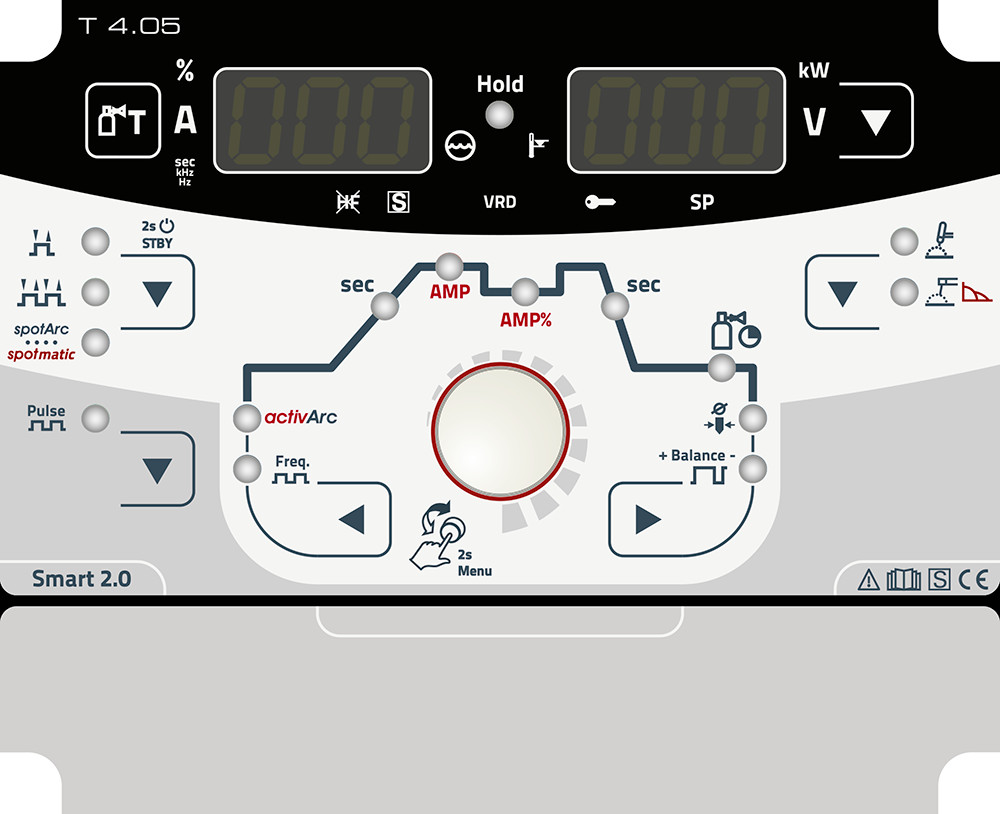

Control

• One-knob operation
• Welding sequence selection and parameter adjustment via click wheel or with the classic method via sequence buttons (forward/back)
• Features characteristics for EWM activArc and spotArc at no extra charge
• Expert menu for advanced welding parameter adjustments
• TIG-DC and AC/DC welding, TIG pulses, TIG lift arc welding, HF ignition, MMA DC and AC/DC welding (except Tetrix 230), MMA pulse welding
• Adjustable welding parameters and functions
• TIG welding
• Special AC welding procedure for easy
• joining of markedly different aluminium sheets, e.g. welding 1 mm sheet to a 10 mm sheet
• AC tungsten balling for the respective diameter
• AC waveforms: Sine, trapezoidal, square current
• AC frequency: 30 Hz to 300 Hz (Tetrix 300), 50 Hz to 200 Hz (Tetrix 230)
• Pulse frequency
• AC balance, pulse balance
• Automatic AC frequency
• Pulsed TIG welding in Hz and kHz range up to 15 kHz
• TIG automated pulsing with automatic specification of required pulse parameters
• Metallurgical average value pulses (DC)
• 8 programmed JOBs (welding tasks)
• Operating modes: Non-latched, latched
• Spot welding/tack function (spotArc/spotmatic)
• Spotmatic and spotArc with direct access
• Up-slope/down-slope
• Gas test, flushing
• MMA welding
• Automated MMA pulsing
• Metallurgical average value pulses (DC)
• AC electrode welding
• Pulsed frequency welding
• Antistick function
• Hot start current and hot start time
• Adjustable Arcforce (except Tetrix 230)
• Welding polarity switchover
• 8 programmed JOBs (welding tasks)
• Welding procedure parameters set with LED user guidance
• Start, welding, secondary and end current
• Pulse time and pulse pause time with corresponding slope times
• Up-slope/down-slope time
• kHz pulses: balance, frequency
• Gas pre- and post-flow time
• Electrode diameter
• Digital welding data display with hold function
• Welding current
• Welding voltage
• Welding parameters
• Welding power
• JOB number
• All parameters can be set via the user menu, 8 JOBs (welding tasks) can be programmed
• Reproducible setting of all welding parameters with digital display
