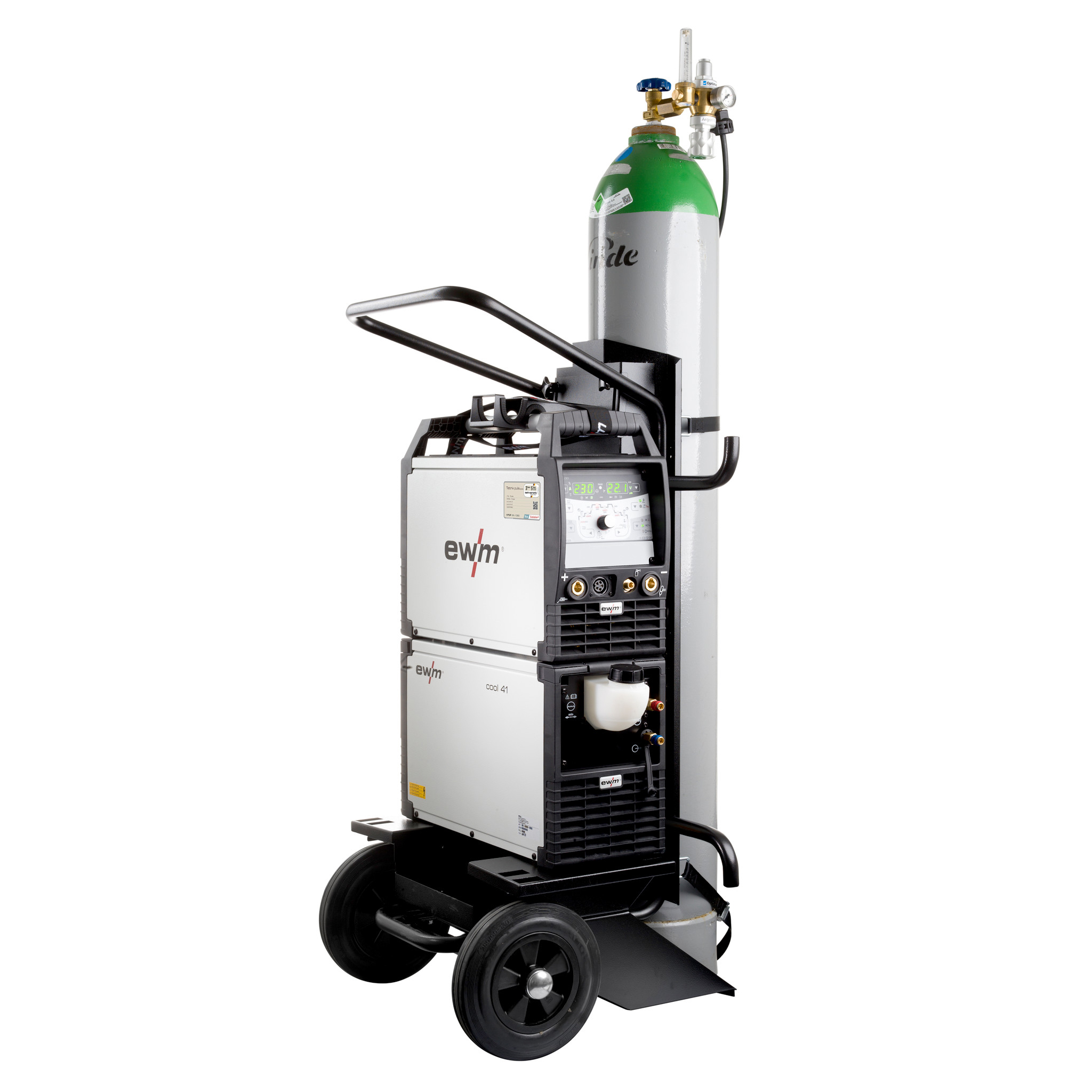

Máy hàn TIG DC: Tetrix 230 Comfort 2.0 puls 8P TM

• Modular DC TIG inverter welding machine, gas- or water-cooled
• Comfort 2.0 control, simple operation with click wheel
• TIG welding
• Features characteristics for EWM activArc and EWM spotArc at no extra charge
• TIG welding with reproducible, electronic HF start
• TIG lift arc welding without HF
• TIG automated pulsing with automatic specification of required pulse parameters
• Pulsed TIG welding in Hz and kHz range up to 15 kHz
• 8 programmed JOBs (welding tasks)
• Non-latched/latched operation
• Clearly structured operating panel, operating elements streamlined to feature the main TIG functions
• Reduced secondary current accessible using torch trigger
• Spot welding/tack function (spotArc/spotmatic)
• spotmatic and spotArc with direct access
• Up-slope/down-slope adjustable
• Spotmatic – halves time required for tacking
• Adjustable gas pre-flows/post-flows
• MMA welding
• MMA average value pulsing
• Ideal for root welding
• Safe, reliable vertical-up and vertical-down welding
• Adjustable hot start current and hot start time
• Antistick function
• Highlights
• Safe ignition also for long hose packages
• Gas-cooled or optionally water-cooled with cool 40 U31 cooling unit
• Excellent torch cooling, resulting in cost savings on consumables due to high-performance centrifugal pump and 4-litre water tank (cool 41U31 cooling unit)
• Energy-saving thanks to high efficiency and standby function
• Connection capability for remote control and function torch
• Trolly 35.2-2 trolley available for delivery
• Mains connection 230 V/16 A
• High mains voltage tolerance +15%/-40% and therefore fully generator-compatible
• 3.5 m mains lead with 16 A earthed plug
• Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage
• Scope of supply includes welding machine only; other components such as trolly and cooling unit can be selected from accessories!

Technical data

Control

• One-knob operation
• Welding sequence selection and parameter adjustment via click wheel or with the classic method via sequence buttons (forward/back)
• Features characteristics for EWM activArc and spotArc at no extra charge
• Expert menu for advanced welding parameter adjustments
• TIG-welding, TIG pulses, TIG lift arc welding, HF ignition, MMA welding, MMA pulse welding
• Adjustable welding parameters and functions
• TIG welding
• Pulsed TIG welding in Hz and kHz range up to 15 kHz
• TIG automated pulsing with automatic specification of required pulse parameters
• Pulse frequency
• Balance, pulse balance
• Metallurgical average value pulses (DC)
• 8 programmed JOBs (welding tasks)
• Operating modes: Non-latched, latched
• Spot welding/tack function (spotArc/spotmatic)
• spotmatic and spotArc with direct access
• Up-slope/down-slope
• Gas test, flushing
• MMA welding
• Automated MMA pulsing
• Metallurgical average value pulses (DC)
• Pulsed frequency welding
• Antistick function
• Hot start current and hot start time
• Adjustable Arcforce (except Tetrix 230)
• Welding polarity switchover
• 8 programmed JOBs (welding tasks)
• Welding procedure parameters set with LED user guidance
• Start, welding, secondary and end current
• Pulse time and pulse pause time with corresponding slope times
• Up-slope/down-slope time
• kHz pulses: balance, frequency
• Gas pre- and post-flow time
• Electrode diameter
• Digital welding data display with hold function
• Welding current
• Welding voltage
• Welding parameters
• Welding power
• JOB number
