Thiết bị hàn của hãng EWM   Máy hàn TIG DC
  • Máy hàn TIG DC: Picotig 200 puls TG

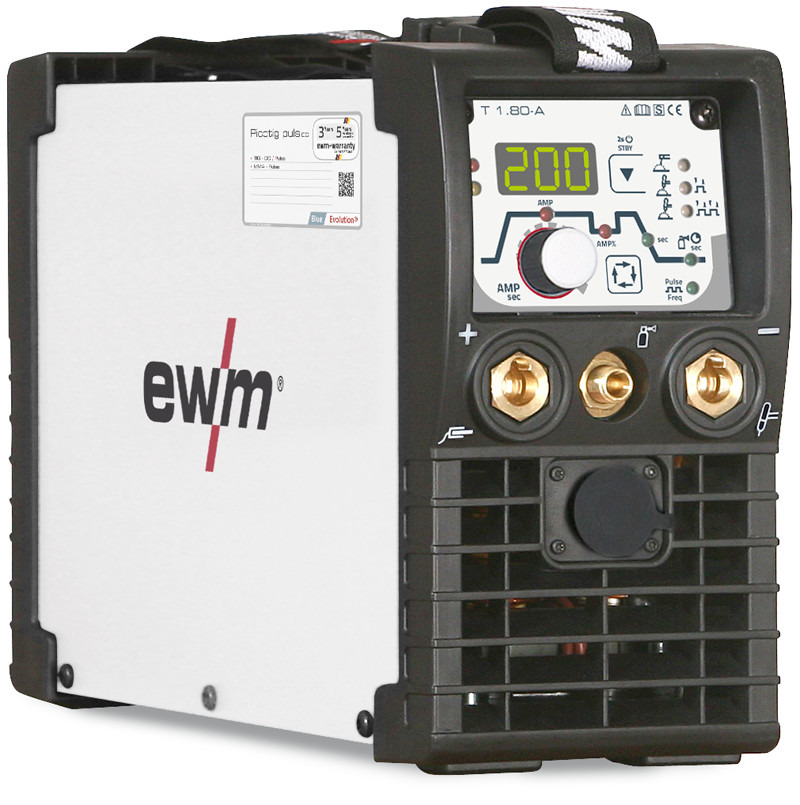

    Máy hàn TIG DC: Picotig 200 puls TG
Máy hàn TIG DC: Picotig 200 puls TG

Máy hàn TIG DC: Picotig 200 puls TG

Nhà sản xuất:EWM

Mã sản phẩm:

Xuất xứ:Germany

Bảo hành:36 tháng

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
  • Thông số của sản phẩm
  • Setting range for welding current
     :
    5 A - 200 A
  • Mô tả sản phẩm
    • Gas-cooled DC TIG inverter welding machine
    • TIG welding with reproducible, electronic HF start
    • TIG lift arc welding without HF
    • MMA pulse welding and pulsed TIG welding up to 2 kHz
    • Non-latched/latched operation
    • Clearly structured operating panel, operating elements streamlined to feature the main TIG functions
    • Reduced secondary current accessible using torch trigger
    • Up-slope/down-slope adjustable
    • Adjustable gas pre-flows/post-flows
    • MMA welding
    • Adjustable hot start current and hot start time
    • Adjustable Arcforce
    • Antistick function
    • Energy-saving thanks to high efficiency and standby function
    • Portable, including shoulder strap
    • 3.5 m mains supply lead with 16 A shock-proof plug
    • Mains connection 230 V/16 A
    • High mains voltage tolerance +15%/-40% and therefore fully generator-compatible
    • 3.5 m mains lead with 16 A earthed plug
    • Overvoltage protection: No damage to machine caused if inadvertently connected to 400-V mains voltage

    Technical data

      TIG MMA
    Setting range for welding current 5 A - 200 A 5 A - 150 A
    Duty cycle at ambient temperature 40 °C
    25 % 200 A –
    35 % – 150 A
    60 % 150 A 120 A
    100 % 140 A 100 A
    Open circuit voltage 90 V
    Mains frequency 50 Hz / 60 Hz
    Mains fuses (slow-blow) 1 x 16 A
    Mains voltage (tolerances) 1 x 230 V (-40 % - +15 %)
    Max. connected load 6 kVA 6.4 kVA
    Recommended generator power 8.1 kVA 8.6 kVA
    cos φ 0.99
    Efficiency 86 %
    Dimensions machine, LxWxH in mm 428 x 136 x 252
    Weight, machine 8 kg
    Torch connection Decentral

    Control



    • One-knob operation: direct access to the most important TIG parameters
    • Practical reduction of the operating elements down to the most important functions



    Welding process TIG , MMA
    Ignition options HF , Liftarc
    E-Hand-Funktionen Hotstart , Arcforce , Antistick
    Parameters in display Welding current , Welding parameters
    Operating modes Non-latched
      Gas pre-flow time
