Máy khử từ Set Degauss 600

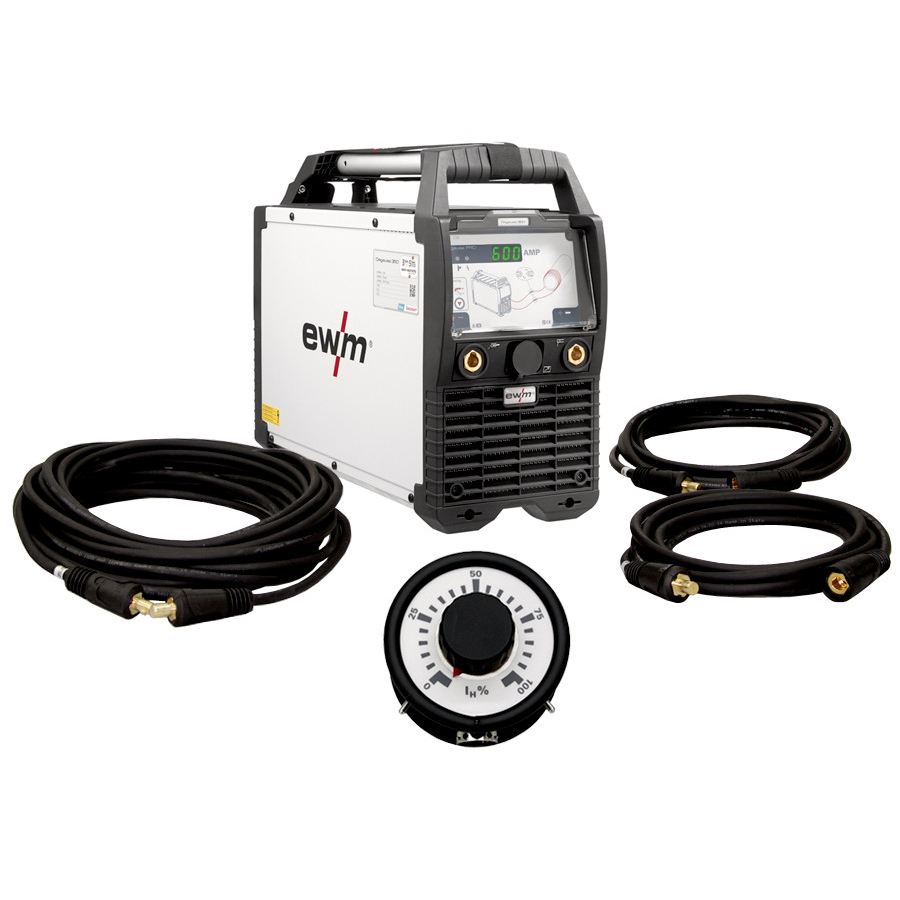

• Set: Degauss 600 degaussing machine, two 5 m load cables (35 mm²) and one 20 m load cable (35 mm²), RT DGS1 remote control including 5 m connection cable
• Degauss – automatic degaussing process before welding:
• dependable degaussing for better welding results through stable welding process without magnetic deflection, minimisation of finishing work
• activgauss (10–250 A) – degaussing during welding:
• avoids moving up of magnetic field during the welding process in case of very long and strongly magnetised components
• Quick connection to the component thanks to the practical load cable set
• Robust design suitable for construction site use
• Impact-resistant casing
• Inspected protection against splash water (IP-34s)
• RT DGS1 remote control – controls degaussing during welding (activgauss):
• activates the activgauss function
• Infinitely adjustable current for generation of the required opposing magnetic field
• Pole reversing switch, start/stop function
• Operation directly at the welding site
• Recommended accessories: FIM1-4 magnetic field meter for measuring magnetic direct and alternating fields
• Advantages of degaussing:
• No deflection of the arc by residual magnetism in the workpiece
• Prevention of lack of fusion due to insufficient sidewall fusion
• Minimisation of finishing work
• Cost-efficient and high-quality results

Control

• One-knob operation for automatic degaussing

Technical data

Version	Degauss 600
Mains voltage (tolerances)	-25 % - 16 A
Mains fuses (slow-blow)	-25 % - 16 A
Degaussing current	10 A - 600 A
cos φ	0.99
Efficiency	90 %
Dimensions machine, LxWxH in mm	Dimensions (L x B x H) x 539 mm x 210 mm x 415 mm
	Dimensions (L x B x H) x 21.2 inch x 8.3 inch x 16.3 inch
Weight, machine	25 kg
	55.1 lbs
EMC class	A
Insulation class	H
Protection class	IP34s
Approvals
