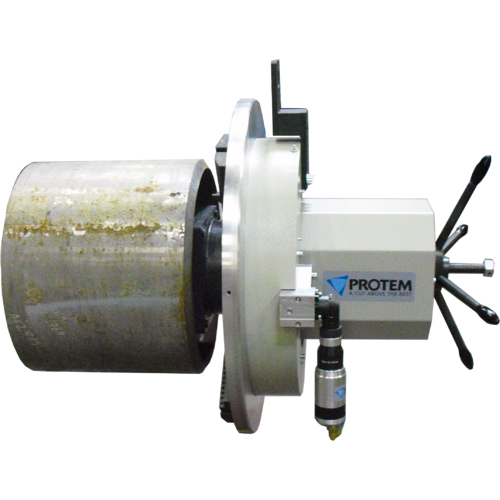

Máy vát ống US450 - Heavy Duty Pipe Beveling Machine

Máy vát ống US450 - Heavy Duty Pipe Beveling Machine

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
  • Thông số của sản phẩm
  • Standard Capacity
    457.2mm - 914.4mm (18“ - 36“)
  • Extended Capacity
    457.2mm - 1422.4mm (18“ - 56“)
  • Cutting head gear drive
    5-6 rpm nominal speed. Approximate rotation speed according to air pressure and air flw
  • Specifi shapes & angles
    Facing 90°, bevel 30°, 37°30, 45°, counterbore, J-bevel, Other on request
  • Feed stroke
    98 mm
  • Expansion
    28 mm (1.102”)
  • Single pneumatic drive
    2,3 kW, 6 bar (87 psi), 3100 l/min (109 cfm)
  • Double pneumatic drive
    2 x 2,3 kW, 6 bar (87 psi), 2 x 3100 l/min (2 X 109 cfm)
  • Double hydraulic drive
    2 x hydraulic drives (recommended HPP: 22kW)
  • Clamping
  • Mô tả sản phẩm
  • Ultimate end machining solution for tubes and pipes with Ø ranging from 457.2mm (18“) to 914.4mm (36“) for numerous applications. Very powerful, versatile and reliable heavy duty beveler for demanding weld-end preparation applications. Unique capabilities for construction, maintenance and repair works on-fild or in the assembly workshop.

    Strong ID clamping mandrel provides safe and secured mounting and fiing. Cold machining process and no Heat Affcted Zone. For unmatched results! Available with dual pneumatic drive or dual hydraulic drive (to be used with a 22KW hydraulic power unit) The durability, reliability and capacity of the US450 earned this mobile machining unit the excellent reputation it enjoys wherever it is used in the world.

    Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve



      Powerful Machining Equipment

      Easy and Safe use for the Operators

      No Heat Affcted Zone

      High Accuracy

      Fast and easy mounting

      The tool bits can be changed and adjusted very quickly

      The machine can be used in all positions: vertical, horizontal, over head

      Versatile Cutting Head: the tool-holder plate can accept up to 4 tool bits for simultaneous machining operations (land, bevel, counterboring, j prep)

      Smooth and Burr-Free Surface Finish

      No vibration during the machining process

    US450-1062 Heavy Duty Beveling Unit PROTEM US450 Kit56" for Ø 18"-56" (457.2mm-1422.4mm) with powerful hydraulic drive.
    US450-1068 Heavy Duty Beveling Unit PROTEM US450 for Ø 18"- 36" (457.2mm-914.4mm) with powerful dual hydraulic drive.

    Use On-Site or in Workshop:
