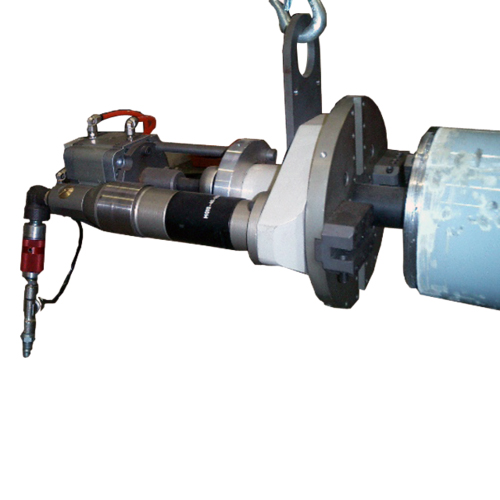

The portable id mount PROTEM US40CA tube and pipe beveling machine is powerful, durable, reliable and versatile.The US40CA covers Ø ranging from 43mm (1.692”) to 219mm (8.622”). The standard tool plate will accept multiple tool bits, allowing up to four simultaneous machining operations which may include 30°, 37°30. 45° bevels with or without land, J-bevels, compound bevels, facing, counterboring operations,cutting tubes to length and removal of weld joints from heat exchanger tubes.
The tool bits can be changed and adjusted very quickly. Carbide tool inserts may also be used. The US40CA features a self-accepting torque system and an integral drive motor. It can be either pneumatically or electrically or hydraulically driven. The PROTEM US40CA will perform repeatable high quality weld preparations on all types of materials including mild steel, chrome, stainless steel, duplex, super duplex, copper-nickel alloy steel, inconel, P91. aluminium, copper and exotic alloys.
Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve
| ORDER NR. |
DESCRIPTION |
| US40CA-1000 |
Pipe Facing Machine PROTEM US40 with single pneumatic drive, for Ø1.692“ - 8.622“ (43mm - 219mm). The US40CA features an integrated automatic clamping system. |
US40CA On-Site:
