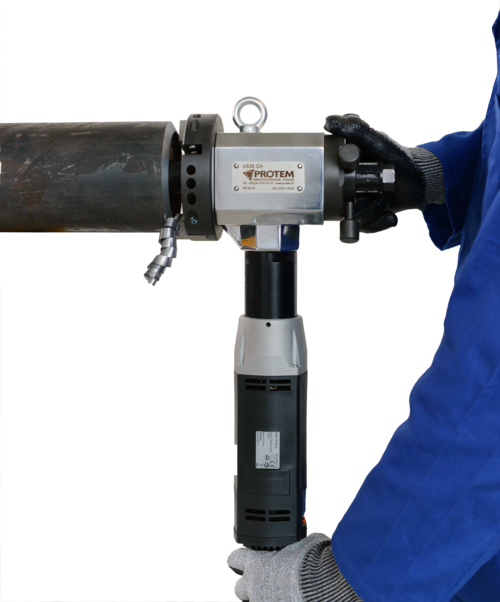

The US30CH portable pipe beveling machine is durable, reliable, versatile and light weighted. The standard tool-holder plate will accept multiple tool bits, allowing up to four simultaneous machining operations. Such operations may include: 30°, 37°30, 45° bevels, J-bevels, compound bevels, facing, counterboring, OD chamfering, removal of weld joints and/or cutting tubes to length of heat exchanger and boiler tubes.
The tool bits can be changed and adjusted very quickly. Carbide tool-inserts may also be used. The US30CH features a self-accepting torque system and an integral drive motor.
This very powerful pipe beveler will perform repeatable high quality weld preparations on all types of materials including mild steel, chrome, stainless steel, duplex, super duplex, copper-nickel alloy steel, inconel, P91. aluminium, copper and virtually all exotic alloys.
Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve
Advantages:
- Portable
- Powerful Machining Equipment
- Easy and Safe use for the Operators
- No Heat Affcted Zone
- High Accuracy
- Fast and easy mounting
- The tool bits can be changed and adjusted very quickly
- Adapted for works in tight spaces
- The machine can be used in all positions: vertical, horizontal, over head
- Versatile Cutting Head: the tool-holder plate can accept up to 4 tool bits for simultaneous machining operations (land, bevel, counterboring, j prep)
- Smooth and Burr-Free Surface Finish
- No vibration during the machining process
| ORDER NR. |
DESCRIPTION |
| US30CH-1000 |
Pipe Beveling Machine US30CH for Ø 1.259“ - 4.488“ (32mm - 114mm) with pneumatic drive |
| US30CH-1010 |
Pipe Beveling Machine US30CH New Generation for boilers with option 11bis - longer mandrel for boiler works, for Ø 1.259“ - 4.488“ (32mm - 114mm) with pneumatic drive |
| US30CH-1012 |
Pipe Beveling Machine US30CH New Generation for boilers for Ø 1.259“ - 6.625“ (32mm - 168.3mm) with pneumatic drive. Machine fited with extended tool-holder plate. |
| US30CH-1022 |
Pipe Beveling Machine US30CH New Generation for boilers for Ø 1.259“ - 4.488“ (32mm - 114mm) with electric drive MS10 and with option 11bis, longer mandrel for boiler works. |
| US30CH-1024 |
Pipe Facing Machine US30CH for Ø 1.259“ - 6.625“ (32mm - 168.3mm) with electric drive 220V. Machine fited with extended tool-holder plate |
| US30CH-1026 |
Pipe Beveling Machine US30CH for Ø 1.259“ - 6.625“ (32mm - 168.3mm) with pneumatic right angle drive. Machine fited with extended tool-holder plate. |
| US30CH-1030 |
Pipe Beveling Machine US30CH New Generation for boilers for Ø 1.259“ - 4.488“ (32mm - 114mm) with electric drive 220V, MS15. 1500W. |
| US30CH-1040 |
Pipe Beveling Machine US30CH New Generation for boilers for Ø 1.259“ - 4.488“ (32mm - 114mm) with electric drive 110V, MS15. 1500W. |
| US30CH-1042 |
Pipe Beveling Machine US30CH New Generation for boilers for Ø 1.259“ - 4.488“ (32mm - 114mm) with electric drive 110V, MS15. 1500W and with option 11bis, longer mandrel for boiler works. |
| US30CH-1044 |
Pipe Beveling Machine US30CH for Ø 1.259“ - 6.625“ (32mm - 168.3mm) with electric drive 110V. Machine fited with extended tool-holder plate. |
Applications:
Use On-Site or in Workshop:
