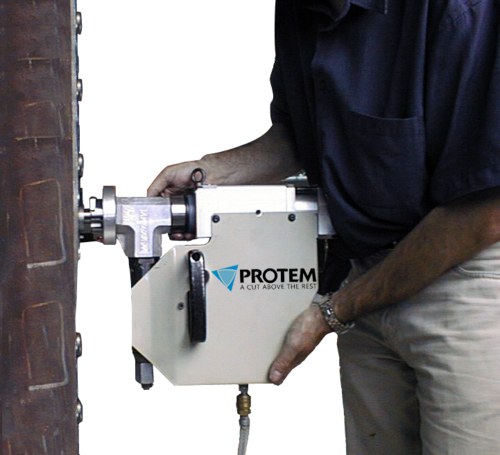

Máy vát ống US25TP - Boiler Tubes Beveling Machine Full Automatic Version

Máy vát ống US25TP - Boiler Tubes Beveling Machine Full Automatic Version

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
Catalogue sản phẩm
  • Thông số của sản phẩm
  • Standard Capacity
    26mm - 65mm (1.023“-2.559“)
  • Extended Capacity
    On Request
  • Cutting head gear drive
    150 rpm offload speed 70 rpm nominal speed. Approximate rotation speed according to air pressure and air flw
  • Specifi shapes & angles
    Facing 90°, bevel 30°, 37°30, 45°, counterbore, J-bevel, Other on request
  • Feed stroke
    30 mm
  • Expansion
    10 mm (0.394”)
  • Pneumatic drive
    730 W, 6 bar (87 psi), 1400 l/min (49 cfm)
  • Clamping
    Automatic Clamping and Feed
  • Mô tả sản phẩm
  • The US-TP series are fully automated beveling machines integrating the clamping mandrel with the tool holders of the US Series.

    The clamping and the feeds are automatic and adjustable. The US-TP series are suited for serial jobs on heat exchangers (tubes cut to length, weld joint removal, beveling operations).

    Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve.


    US25TP-1000 ID Clamp Pipe Beveling Machine US25TP pneumatically driven with automatic clamping and automatic feed system for diameters 1“-3.543“ OD (25mm-90mm OD).
    S18TP-1112 Milling tool with tool-inserts
    O-SE-P1-3.-CF-20A Carbide tool-insert
    210-0008 Balancer
    US25TP-FC Limit Stop


    US25TP On-Site:
