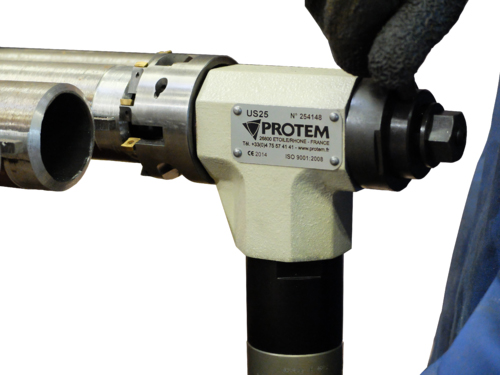

Máy vát ống US25TA - Pipe Beveling Machine for Fin Tubes

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Thông số của sản phẩm
Standard Capacity

:

25mm - 90mm (1“-3.543“)
Extended Capacity

:

12,7mm - 120mm (0.5“ - 4.724“)
Cutting head gear drive

:

150 rpm offload speed 70 rpm nominal speed. Approximate rotation speed according to air pressure and air flw
Specifi shapes & angles

:

Facing 90°, bevel 30°, 37°30, 45°, counterbore, J-bevel, Other on request
Expansion

:

10 mm (0.394”)
Pneumatic drive

:

730 W, 6 bar (87 psi), 1400 l/min (49 cfm)
Clamping

:

Manual with a key

Mô tả sản phẩm

The TA option replaces the tool holder of the US series machines through a milling head. This option is designed to perform weld preps and to excavate membrane walls. Both operations, beveling and excavating, can be performed simultaneously. The machine is clamped inside the tube for perfectly concentric clamping.

Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve

ORDER NR.	DESCRIPTION
US25TA-1000	ID Mounted Machining Unit US25TA for the simultaneous beveling of fin tubes and the removal of membranes for diameters Ø 3.543“ (90mm) with pneumatic drive MO10, equipped with one milling-head including 2 inserts.
US25TA-1002	ID Mounted Machining Unit US25TA for the simultaneous beveling of fin tubes and the removal of membranes for diameters Ø 3.543“ (90mm) with pneumatic drive MO10, equipped with one milling-head including 3 inserts.
US25TA-1004	ID Mounted Machining Unit US25TA for the simultaneous beveling of fin tubes and the removal of membranes for diameters Ø 3.543“ (90mm) with pneumatic drive MO20, equipped with one milling-head including 2 inserts
US25TA-1006	ID Mounted Machining Unit US25TA for the simultaneous beveling of fin tubes and the removal of membranes for diameters Ø 3.543“ (90mm) with pneumatic drive MO20, equipped with one milling-head including 3 inserts.
