The saddle type tappings allow the perpendicular connection of laterals sections on main pipes. Saddle type tappings are located on collectors and boiler superheaters. These tappings are mainly carried out on stationary machines or with oxy fuel cutting or grinding machines.

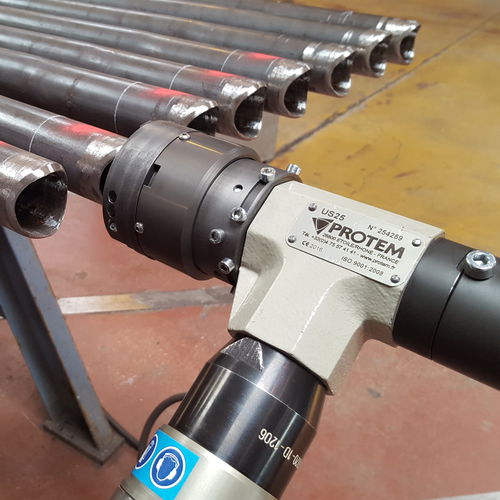

The US25GL saddle pipe beveling machine is a portable, powerful, robust, reliable and versatile beveling machine.
PROTEM offrs a portable machining tool to perform such saddle type tappings. This cold machining process does not create any heat affcted zone and produces repeatable high quality machinings.
The robust US25GL will perform repeatable high quality weld preparations on all types of materials including carbon steel, stainless steel, various alloys such duplex, super duplex, inconel, aluminum, copper, exotic alloys, etc...
A template is necessary per tube diameter and collector.
Please consult us for more information.
Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve
| ORDER NR. |
DESCRIPTION |
| US25GL-1000 |
Saddle Beveling Machine PROTEM US25GL with pneumatic drive |
| US25GL-1020 |
Saddle Beveling Machine with electric drive PROTEM US25GL |
| US25GL-1311 |
Adapting set, one is necessary for each diameter |
US25GL On-Site:
Saddle Type Tappings:
Applications:
