Máy vát ống US150 - Pipe Beveling Machine

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Catalogue sản phẩm

Thông số của sản phẩm
Standard Capacity

:

150mm - 508mm (5.905“ - 20“)
Extended Capacity

:

150mm - 610mm (5.905“ - 24.015“)
Cutting head gear drive

:

7-10 rpm offload speed, 5-7 rpm nominal speed. Approximate rotation speed according to air pressure and air flw
Specifi shapes & angles

:

Facing 90°, bevel 30°, 37°30, 45°, counterbore, J-bevel, Other on request
Feed stroke

:

100 mm
Expansion

:

30 mm (1.181”)

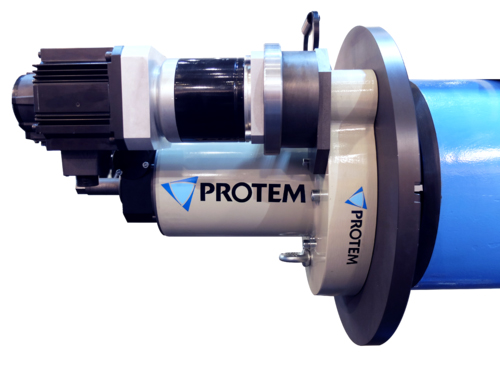

Electric drive

:

380 V (2200 W)
Single pneumatic drive

:

1,47 kW, 6 bar (87 psi), 1800 l/ min (63 cfm)
Double pneumatic drive

:

2 x 1,47 kW, 6 bar (87 psi), 2 x 1800 l/min (2 X 63 cfm)
Clamping

:

Manual with a key

Mô tả sản phẩm

The US150 heavy duty beveler is a reliable and powerful machine that performs repeatable, high quality weld end preparation operations on all metal pipes including mild steel, chrome, stainless steel, duplex, super duplex, coppernickel alloy steel, inconel, P91, aluminium, copper and exotic alloys. The US150 covers Ø ranging from 150mm (5.905”) ID to 508mm (20”) OD.

This machine can also be delivered with its 610mm (24.015”) tool-holder plate. It can be either pneumatically, electrically or hydraulically driven. The standard tool-plate will accept multiple tool bits, allowing up to four simultaneous machining operations. Operations may include 30°, 37°30, 45° bevels with or without land, J-bevels, compound bevels, facing, counterboring operations, etc. The tool bits can be changed and adjusted very quickly. Carbide tool-inserts may also be used. Easy to use, dependable and versatile, the US150 will allow you to drastically optimize your tube and pipe welding preparation works.

Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve

Advantages:

Transportable
Powerful Machining Equipment
Easy and Safe use for the Operators
No Heat Affcted Zone
High Accuracy
Fast and easy mounting
The tool bits can be changed and adjusted very quickly
Adapted for works in tight spaces
The machine can be used in all positions: vertical, horizontal, over head
Versatile Cutting Head: the tool-holder plate can accept up to 4 tool bits for simultaneous machining operations (land, bevel, counterboring, j prep)
Smooth and Burr-Free Surface Finish
No vibration during the machining process

ORDER NR.	DESCRIPTION
US150-1062	eavy Duty Pipe Facing Machine with dual hydraulic drive, for Ø 5.905" - 20" (150mm - 508mm)
US150-1064	Heavy Duty Pipe Facing Machine with single hydraulic drive and regulation valve. For Ø 5.905" - 20" (150mm - 508mm)
US150-1068	Heavy Duty Pipe Facing Machine with dual hydraulic drive and regulation valve. Fitted with extension Kit24" for Ø 5.905" - 24.015" (150mm - 610mm)
US150-1080	Heavy Duty Pipe Facing Machine with brushless electric drive & Three-Phase Motorization. Please indicate the required voltage and frequency for your application. For Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1000	Heavy Duty Pipe Facing Machine with dual pneumatic drive and dual bearing for higher accuracy. For options US150-3000, US150-3100, US150-3200, for Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1002	Heavy Duty Pipe Facing Machine with dual pneumatic drive and dual bearing for higher accuracy. For Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1060	Heavy Duty Pipe Facing Machine with dual hydraulic drive and dual bearing for higher accuracy. For Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1062	Heavy Duty Pipe Facing Machine with dual hydraulic drive. For Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1064	Heavy Duty Pipe Facing Machine with single hydraulic drive and dual bearing and regulation valve for higher accuracy. For options US150-ASB, US150-KS75-30, US150-KS75-36, for Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1066	Heavy Duty Pipe Facing Machine with single hydraulic drive. For Ø 5.905" - 20" (150mm - 508mm)
US150DSB-1068	Heavy Duty Pipe Facing Machine with dual hydraulic drive, dual bearing and regulation valve. Fitted with extension Kit24" for Ø 5.905" - 24.015" (150mm - 610mm)
US150-1000	Heavy Duty Pipe Facing Machine with dual pneumatic drive, for Ø 5.905" - 20" (150mm - 508mm)
US150-1020	Heavy Duty Pipe Facing Machine with single electric drive - 2.2 kw power - 380 V with dual direction of rotation, speed regulator, emergency stop & Three-phase motorization. Please indicate the required voltage and frequency, for Ø 5.905" - 20" (150mm - 508mm)
US150-1022	Heavy Duty Pipe Facing Machine with single electric drive - 2.2 kw power - 380 V with dual direction of rotation, speed regulator, emergency stop & Three-phase motorization. Please indicate the required voltage and frequency. Fitted with extension Kit24" for Ø 5.905" - 24.015" (150mm - 610mm)
US150-1060	Heavy Duty Pipe Facing Machine with dual hydraulic drive and regulation valve. For Ø 5.905" - 20" (150mm - 508mm)
