Máy vát ống S18CA

Máy vát ống S18CA

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
Catalogue sản phẩm
  • Thông số của sản phẩm
  • Standard Capacity
     :
    18mm - 42mm (0.708“-1.653“)
  • Extended Capacity
     :
    14mm - 42mm (0.551“ - 1.653“)
  • Cutting head gear drive
     :
    300 rpm offload speed, 150 rpm nominal speed
  • Specifi shapes & angles
     :
    I, V, Other on request
  • Feed stroke
     :
    35 mm
  • Pneumatic drive
     :
    730 W, 6 bar (87 psi), 1400 l/min (49 cfm)
  • Clamping
     :
    Automatic
  • Mô tả sản phẩm

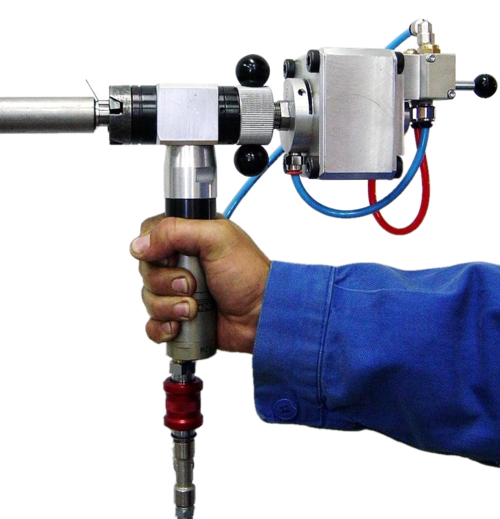

  • The S18CA is a powerful beveling and facing machine with automatic clamping. The standard tool-holder plate will accept multiple tool bits, allowing several simultaneous machining operations.

    Such operations may include beveling, facing, counterboring, compound beveling, od chamfering, removal of weld joints on heat exchanger tubes, cut to lenght of heat exchanger tubes.

    The S18CA features a self-accepting torque system and an integral drive motor.

    Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve

    S18CA On-Site:

    ORDER NR. DESCRIPTION
    S18CA-1000 ID Mount Beveling Machine with pneumatic drive and clamping - Milling Cutter
    S18CA-1002 Tube Beveling Machine S18CA with automatic clamping, pneumatic drive, for Ø 0.708“-1.653“ (18mm-42mm)
    S18CA-1004 Tube Facing & Beveling machine S18CA with pneumatic drive and automatic clamping system for Ø 0.708“- 1.653“ (18mm-42mm), fited with milling tool and clamping mandrel for Ø starting with 0.551“ (14 mm)
    S18CA-1317 Milling Cutter 12 to 24mm Diameter
    S18CA-1318 Milling Cutter 18 to 38mm Diameter
    S18CA-1800 Limit Stop
    210-0002 Balancer for S18CA
