The air powered SM8 mini Tube Beveler is a very robust and reliable portable weld-end preparation machine. It allows to perform repeatable quality weld preps on tubes.
The cutting head will bevel, face, cut to lenght, remove weld joints individually or in a simultaneous operation.
The SM8 is very easily installed on all tubes and completely torque accepting (no holding of the machine is necessary during the machining operation)
The SM8 mini beveler needs only 0.689“ (17,5mm) clearance and can be used in very tight spaces.
Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve
Advantages:
- Portable
- Powerful Machining Equipment
- Easy and Safe use for the Operators
- No Heat Affcted Zone
- High Accuracy
- Fast and easy mounting
- The tool bits can be changed and adjusted very quickly
- Adapted for works in tight spaces
- The machine can be used in all positions: vertical,horizontal, over head
- Perfect and repeatable welding preparation
- Smooth and Burr-Free Surface Finish
- No vibration during the machining process
Applications:
Use On-Site or in Workshop:
SM8 Pipe Beveling Machine:
| ORDER NR. |
DESCRIPTION |
| SM8-1000 |
Tube Beveling Machine SM8 with pneumatic drive for Ø 0.314“-1.259“ (8mm-32mm) |
| SM8-1020 |

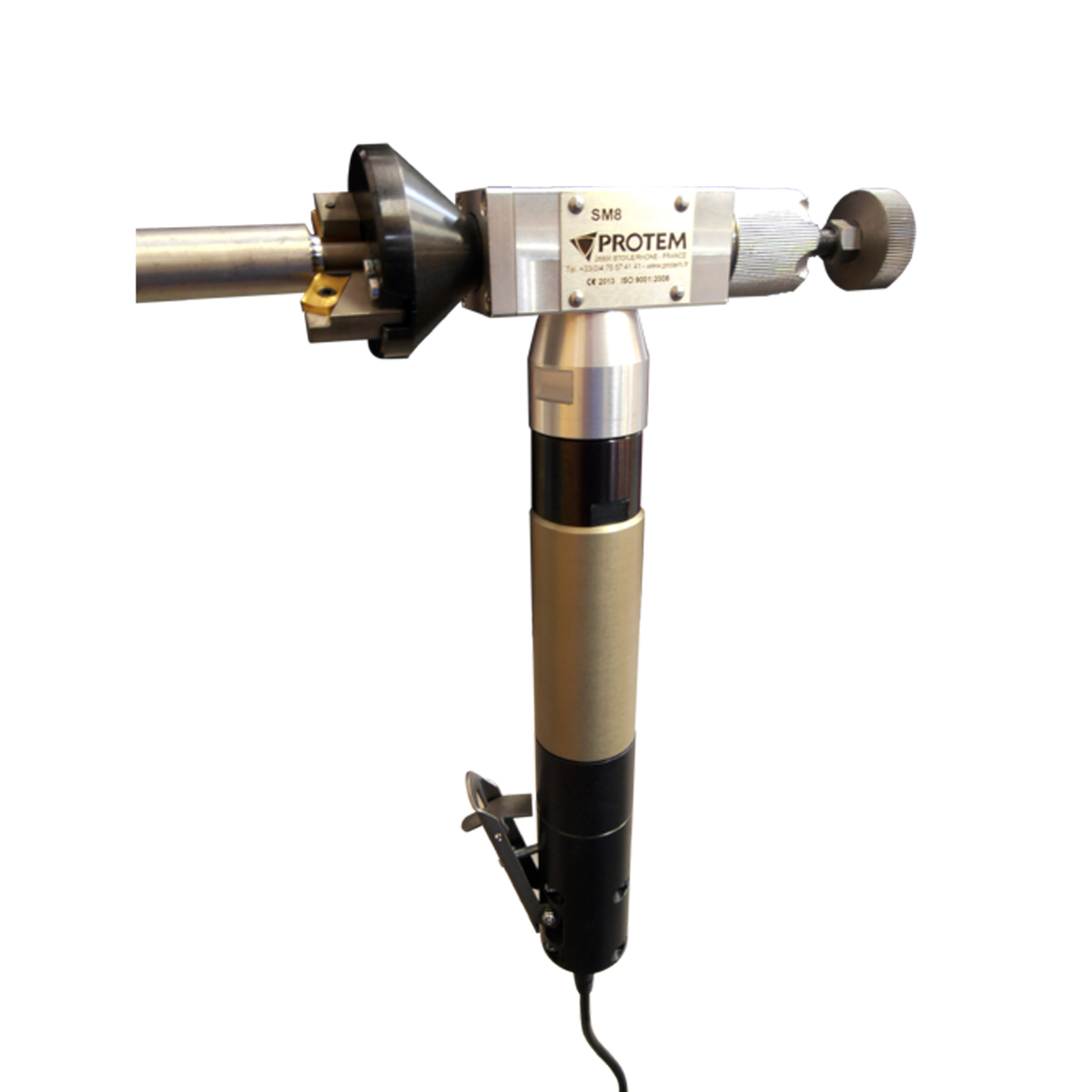

Tube Beveling Machine SM8 with electric drive 220V for Ø 0.314“-1.259“ (8mm-32mm) |
| SM8-1022 |
Tube Beveling Machine SM8 with cordless drive 220V for Ø 0.314“-1.259“ (8mm-32mm) |
| SM8-1040 |
Tube Beveling Machine SM8 with electric drive 110V for Ø 0.314“-1.259“ (8mm-32mm) |
| SM8-1042 |
Tube Beveling Machine SM8 with cordless electric drive 110V for Ø 0.314“-1.259“ (8mm-32mm) |
| SM8-K02 |
Transport Box for SM8 pneumatic,electric or battery |
SM8 Pipe Beveling Machine Options & Accessories:
SM8 Expansion Collets:
| ORDER NR. |
DESCRIPTION |
Picture |
| SM8-1513 |
Short collet for SM8, length 25mm steel (Please specify the required Ø) |
 |
| SM8-1553 |
Short collet for SM8, length 25mm stainless steel (Please specify the required Ø) |
| SM8-1613 |
Collet for SM8, length 40mm steel (Please specify the required Ø) |
| SM8-1653 |
Collet for SM8, length 40mm stainless steel (Please specify the required Ø) |
| SM8-1715 |
Collet for SM8, length 50mm steel (Please specify the required Ø) |
| SM8-1755 |
Collet for SM8, length 50mm stainless steel (Please specify the required Ø) |
SM8 Socket Rods:
| ORDER NR. |
DESCRIPTION |
Picture |
| SM8-1410 |
Socket rod A for Ø 0.314“-0.472“ (8mm-12mm) |
 |
| SM8-1412 |
Socket rod B for Ø 0.472“-1.141“ (12mm-29mm) |
| SM8-1421 |
Short socket rod A for Ø 0.314“-0.472“ (8mm-12mm) |
| SM8-1422 |
Short socket rod B for Ø 0.472“-1.141“ (12mm-29mm) |
| SM8-1427 |
Short socket rod for Ø 0.275“ (7mm) |
SM8 Socket Holders:
| ORDER NR. |
DESCRIPTION |
Picture |
| SM8-1411 |
Socket holder No. 3 for Ø 0.669“-1.188“ (17mm-30.2mm) |
 |
| SM8-1413 |
Socket holder No. 1 for Ø 0.314“-0.472“ (8mm-12mm) |
| SM8-1414 |
Socket holder No. 2 for Ø 0.472“-0.669“ (12mm-17mm) |
| SM8-1423 |
Short socket holder No. 3 for Ø 0.669“-1.188“ (17mm-30.2mm) |
| SM8-1425 |
Short socket holder No. 0 for Ø 0.275“ (7mm) |
SM8 Tool bits:
| ORDER NR. |
DESCRIPTION |
Picture |
| O-SM8-M0-4-H-74 |
Facing tool bit 90° for SM8 for 0.354“-0.590“ (9mm-15mm) |
 |
| O-SM8-M1-4-H-70 |
Facing tool bit 90° for SM8 |
|
| O-SM8-M2-4-H-71 |
Beveling tool bit 30° for SM8 |
 |
| O-SM8-M2INV-4-H-75 |
Beveling tool bit inversed 30° for SM8 |
 |
| O-SM8-M3-4-H-72 |
Beveling tool bit 37°30 for SM8 |
 |
| O-SM8-M4-4-H-73 |
Beveling tool bit 45° for SM8 |
 |
