The air powered SM8 mini Tube Beveler is a very robust and reliable portable weld-end preparation machine. It allows to perform repeatable quality weld preps on tubes.
The cutting head will bevel, face, cut to lenght, remove weld joints individually or in a simultaneous operation.
The SM8 is very easily installed on all tubes and completely torque accepting (no holding of the machine is necessary during the machining operation)
The SM8 mini beveler needs only 0.689“ (17,5mm) clearance and can be used in very tight spaces.
Pneumatically driven machines have to be used with a lubricating fiter. Recommended option: regulation valve
Advantages:
- Portable
- Powerful Machining Equipment
- Easy and Safe use for the Operators
- No Heat Affcted Zone
- High Accuracy
- Fast and easy mounting
- The tool bits can be changed and adjusted very quickly
- Adapted for works in tight spaces
- The machine can be used in all positions: vertical,horizontal, over head
- Perfect and repeatable welding preparation
- Smooth and Burr-Free Surface Finish
- No vibration during the machining process
S18 Pipe Beveling Machine:
| ORDER NR. |
DESCRIPTION |
| S18-1000 |
Tube Beveling Machine S18 with pneumatic drive for Ø 0.708“-1.653“ (18mm-42mm) |
| S18-1020 |

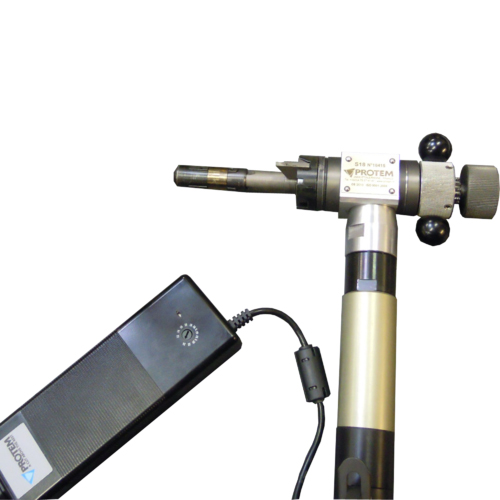

Tube Beveling Machine S18 with electric drive 220V for Ø 0.708“-1.653“ (18mm-42mm) |
| S18-1022 |
Tube Beveling Machine S18 with cordless drive 220V for Ø 0.708“-1.653“ (18mm-42mm) |
| S18-1040 |
Tube Beveling Machine S18 with electric drive 110V for Ø 0.708“-1.653“ (18mm-42mm) |
| S18-1042 |
Tube Beveling Machine S18 with cordless electric drive 110V for Ø 0.708“-1.653“ (18mm-42mm) |
Applications:
Use On-Site or in Workshop:
