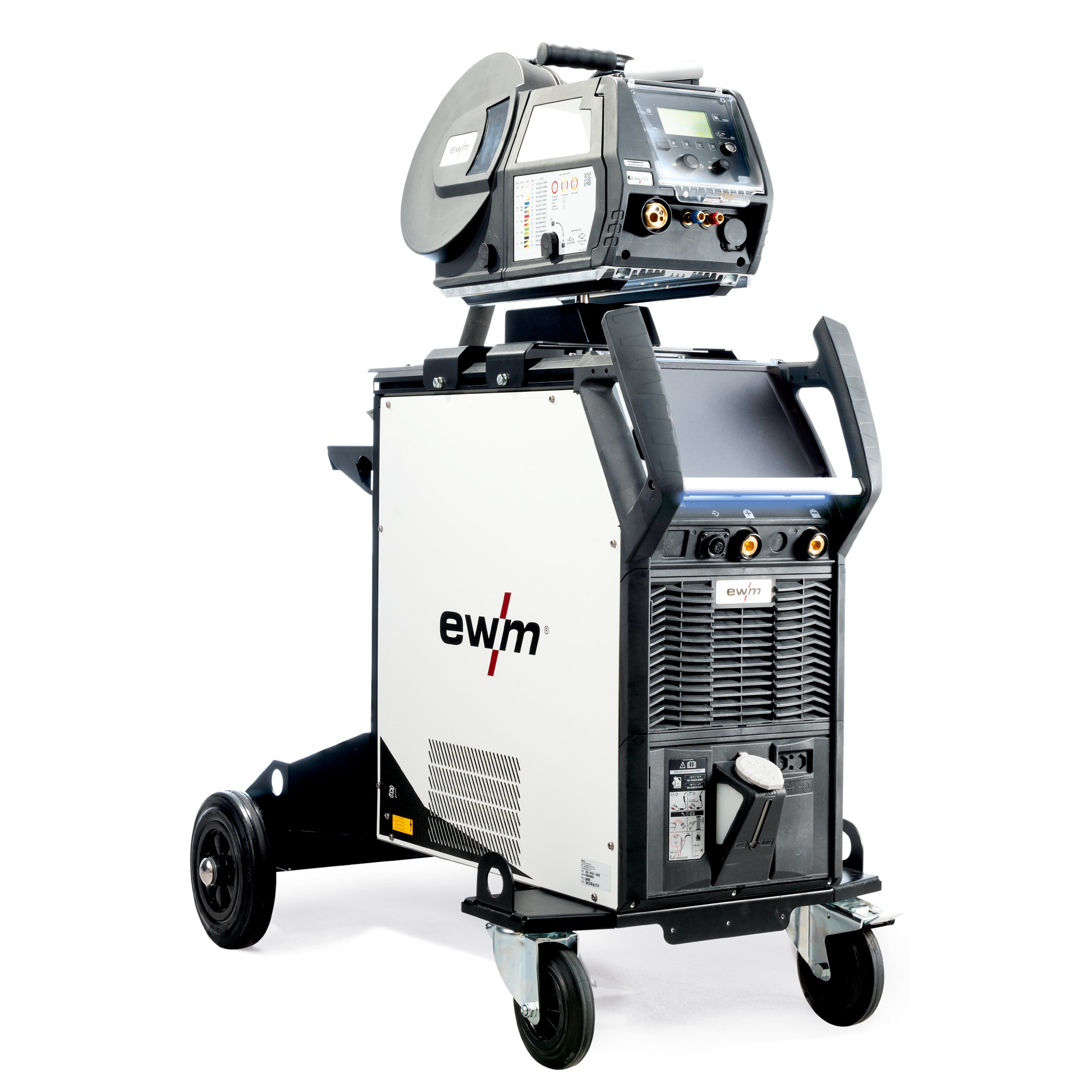

Máy hàn Titan XQ 400 AC puls DW

• No need to purchase additional characteristics – all characteristics for this machine type are included in the scope of delivery ex works
• MIG/MAG inverter welding machine, pulse, with separate wire feeder
• All AC and established DC-MIG/MAG processes are included in the machine at no extra charge
• acArc puls XQ – ideal for aluminium welding with thin sheets
• Thanks to the acArc puls XQ, you can create clean weld seams on even the thinnest metal sheets without any burn marks.
• Perfect MIG/MAG weld seams, even with long welding leads thanks to patented* Rapid Current Control technology (RCC)
• flexFit casing system: Many accessory parts and options can be fixed to the welding machine using customary slot nuts.
• LED information bar: Indicates the current operating status.
• Equipment as delivered: welding machine, including wheel kit with single cylinder bracket, water cooling and 5 m mains connection lead
• All-in – at no extra cost:
• With innovative EWM Synergic characteristics acArc puls XQ, rootArc® XQ/rootArc® puls XQ, coldArc® XQ/coldArc® puls XQ, forceArc® XQ/forceArc® puls XQ, wiredArc XQ/wiredArc puls XQ, pulse/superPuls and Positionweld
• With Synergic characteristics for GMAW standard or pulsed welding for steel/CrNi/aluminium
• Operation without Synergic for setting the welding parameters manually
• Suitable for MMA welding, TIG welding and gouging
• individually configurable programmes for each welding task (JOB)
• Infinitely adjustable arc dynamics (choke effect)
• Adjustable start and end-crater functions
• High-precision, powerful EWM eFeed 4-roll wire feed mechanism for secure feeding of all solid and flux cored wires
• Energy-saving thanks to high efficiency and standby function
• Easy, tool-free change of welding polarity
• Earth fault monitoring (PE protection)
• IP23 spray water protected
• Connection capability for remote control and function torch
• Optional network connectivity with ewm Xnet software via LAN or WiFi gateway
• PC interface for PC300 XQ software
• Free WPQR package for certification up to and including EXC2 in accordance with EN 1090 and for welding of unalloyed steels up to and including S355

Technical data

Setting range for welding current	5 A - 400 A
Duty cycle 40 °C	400 A / 80 %
	370 A / 100 %
Open circuit voltage	82 V
Mains voltage	3 x 400 V
Tolerances	-25 % up to +20 %
Mains frequency	50 Hz / 60 Hz
Recommended generator power	23.8 kVA
Wire feed speed	5 m/min - 25 m/min
	19.685 ipm - 984.253 ipm
Cooling capacity at 1 l/min.	1.5 kW
Pump pressure	3.5 bar
Tank capacity	8 l
Protection classification	IP23
Safety marking
EMC class	A
Dimensions (L x B x H)	1152 mm x 686 mm x 976 mm
	45.354 Zoll x 27.008 Zoll x 45.354 Zoll
Weight	128.5 kg
	283.343 lbs
Standards	IEC 60974-1, -2 and -10 CL.A
