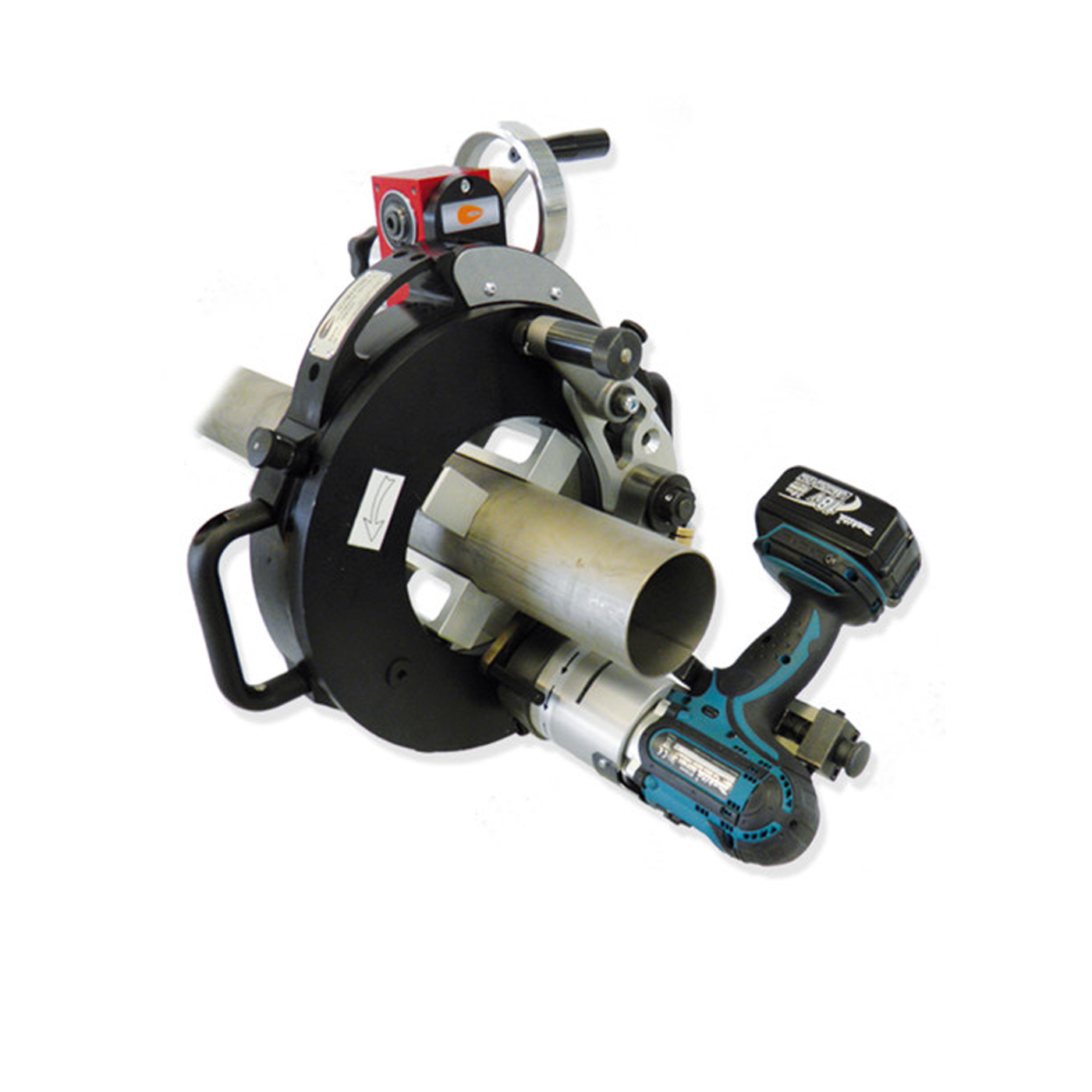

Máy cắt ống Orbital - ULTIMATE SPLIT 1

Máy cắt ống Orbital - ULTIMATE SPLIT 1

Nhà sản xuất:Protem

Mã sản phẩm:

Xuất xứ:Pháp

Giá:Liên hệ(Đã bao gồm VAT)

Thêm vào giỏ hàng
Catalogue sản phẩm
  • Thông số của sản phẩm
  • Machining Capacity
     :
    12.7 mm - 168 mm OD (0.5 inch - 6.6 inch OD)
  • Clamping capacity
     :
    12.7 mm - 168 mm OD (0.5 inch - 6.6 inch OD)
  • Pneumatic drive
     :
    736 W, 6 bar (87 psi), 1400 l/min (49 cfm)
  • RPM Engine
     :
    0 to 1700 rp/min
  • Feed stroke
     :
    30 mm
  • Electric drive
     :
    700W
  • Clamping
     :
    Manual with key
  • Mô tả sản phẩm
  • The ULTIMATE SPLIT 1 has been engineered to fi tube cutting applications in a fabrication workshop or at the job site. This wireless machine can also be bench mounted onto the ULTIMASTER Bench Unit.

    System (B.U.S) along with a 110V or 220V battery adaptor. Our engineering offi paid specifi attention to the design of the equipment in order to achieve a unique orbital cutting machine using a saw blade.

    The U.S 1 is fully portable. It features a cordless drive, a split frame housing and, therefore, it can be directly mounted onto a tube.

    The ULTIMATE SPLIT orbital tube cutter features many advantages:

    • A perfectly perpendicular cut
    • Auto centering on the tube
    • Quick clamping
    • Compact design
    • Burr free
    • No vibration during the cutting process
    • Reliable
    • Durable
    • No heat-affcted zones
    • Perfect preparation for orbital welding
    • Lightweight, easy-to-use, versatile
    • Powerful cordless drive

    ULTIMASTER orbital pipe cutting units are the ideal solution for your on-site jobs. These machines are also perfectly suited for prefabrication workplaces and they can be used under severe conditions (extreme temperatures, high humidity, ionizing radiations)

    ORDER NR. DESCRIPTION
    US1-1000 Orbital Cutting Saw US1 for Ø 0.5"-6.625" (12.7mm-168.3mm) with pneumatic drive.
    US1-1020 Orbital Cutting Saw US1 for Ø 0.5"-6.625" (12.7mm-168.3mm) with electric drive 220V.
    US1-1022 Orbital Cutting Saw US1 for Ø 0.5"-6.625" (12.7mm-168.3mm) with cordless electric drive 220V
    US1-1040 Orbital Cutting Saw US1 for Ø 0.5"-6.625" (12.7mm-168.3mm) with electric drive 110V.
    US1-1044 Orbital Cutting Saw US1 for Ø 0.5"-6.625" (12.7mm-168.3mm) with cordless electric drive 110V.
