Đĩa cắt Motoyuki
  • GLOBAL SAW for reinforcing steel

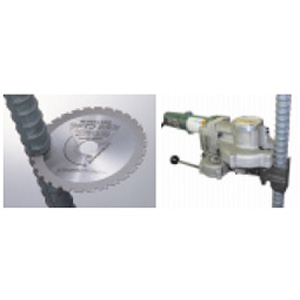

GLOBAL SAW for reinforcing steel

GLOBAL SAW for reinforcing steel

Nhà sản xuất:Motoyuki - Global Saw

Mã sản phẩm:

Xuất xứ:Nhật

Giá:Liên hệ(Đã bao gồm VAT)

Products Code Number of sawblades (per package) Diameter (mm) Kerf (mm) Plate Thickness (mm) Arbor (mm) Number of Teeth Max. use Speed (min-1) Rebar thickness which can be cut (D) Tooth Type Suitable power tool Số lượng
FD-100 5pcs 100 1.4 1.2 25(20) 22 13,000 Up to D19 Dn

SpCiA - Special
machine Circular saw
anti-dust cover
FD-135A 5pcs 135 1.4 1.1 22.23 30 - Up to D32 Dn

Sp - Special machine
FD-135iS 5pcs 230 1.6 1.2 22 30 - Up to D32 Dn

Sp - Special machine
FD38-135 5pcs 135 1.6 1.2 24 30 - Up to D38 Dn

Sp - Special machine
FD-180 5pcs 180 2.0 1.6 20 32 5,500 Up to D51 CB-n

CAS - Circular
saw with dust collector
and anti-dust cover
T.C.T saw blade metal
cutting machine(Small)
FD51-180 5pcs 180 2.0 1.6 32 32 - Up to D51 CB-n

Sp - Special machine anti-dust cover
FD-200 1pcs 200 1.8 1.4 31.75 40 - Up to D51 Dn

Sp - Special machine
FD-305 1pcs 305 2.0 1.6 25.4 48 1,700 Up to D38 D

L - T.C.T saw blade
metal cutting machine
(Low-speed)

*Should not be used with disk grinder and high-speed abrasive cutting machine.

CA - Circular saw with dust collector and anti-dust cover. Co - Cordless circular saw and Cordless T.C.T saw blade metal cutting machine. An - Anti-dust cutter. Sp - Special machine. L - T.C.T saw blade metal cutting machine(Low-speed). S - T.C.T saw blade metal cutting machine(Small). Ci - Circular saw. H - T.C.T saw blade metal cutting machine(High-speed). T - Table circular saw. Ta - Table slide circular saw.

  • Mô tả sản phẩm
  • Special features
    *Tough chips with excellent wear resistance and improved durability
    *Prevention of base metal destruction by an original tooth shape
    *Sharp cutting with number of teeth and tooth thickness optimized for rebar
    *FD-135A performance data. Cutter:SDC32B
    Steel type Diamete Cutting capacity Average cutting time
    SD345 D25 1,000pcs. 7.1sec.
    D32 1,000pcs. 14.2sec.
    SD390 D25 1,000pcs. 7.3sec.
    D32 1,000pcs. 16.8sec.
