Máy hàn Plasma: Microplasma 55

• Modular plasma/TIG welding machine with Comfort 2.0 P control
• Plasma and TIG welding
• Plasma and pulsed TIG welding
• Plasma and pulsed TIG welding up to the kHz range allow a high welding speed with minimal heat input using a constricted arc
• Plasma and TIG welding current adjustable in 0.1 A increments
• Pilot arc current adjustable in 0.1 A increments between 2–15 A
• The pilot arc current can be adjusted at four operating points during the welding process (beforehand, during, and following welding, as well as during pauses in welding)
• Non-latched/latched operation
• Spot welding/tack function (spotArc/spotmatic)
• Spotmatic – reduce the time required for tacking by up to 50% (TIG only)
• Adjustable up-slope and down-slope time
• Adjustable gas pre- and post-flow time
• Temperature, flow and pressure monitoring for the coolant circuit
• All control elements and connections for welding torches, remote controls and workpiece leads are directly accessible on the front of the machine
• Integrated gas metering unit in the connection box
• Non-interchangeable connections for all mediums
• Welding torch connection using quick connect coupling
• Connection capability for remote control
• Two system bus connections (e.g. for ewm Xnet)

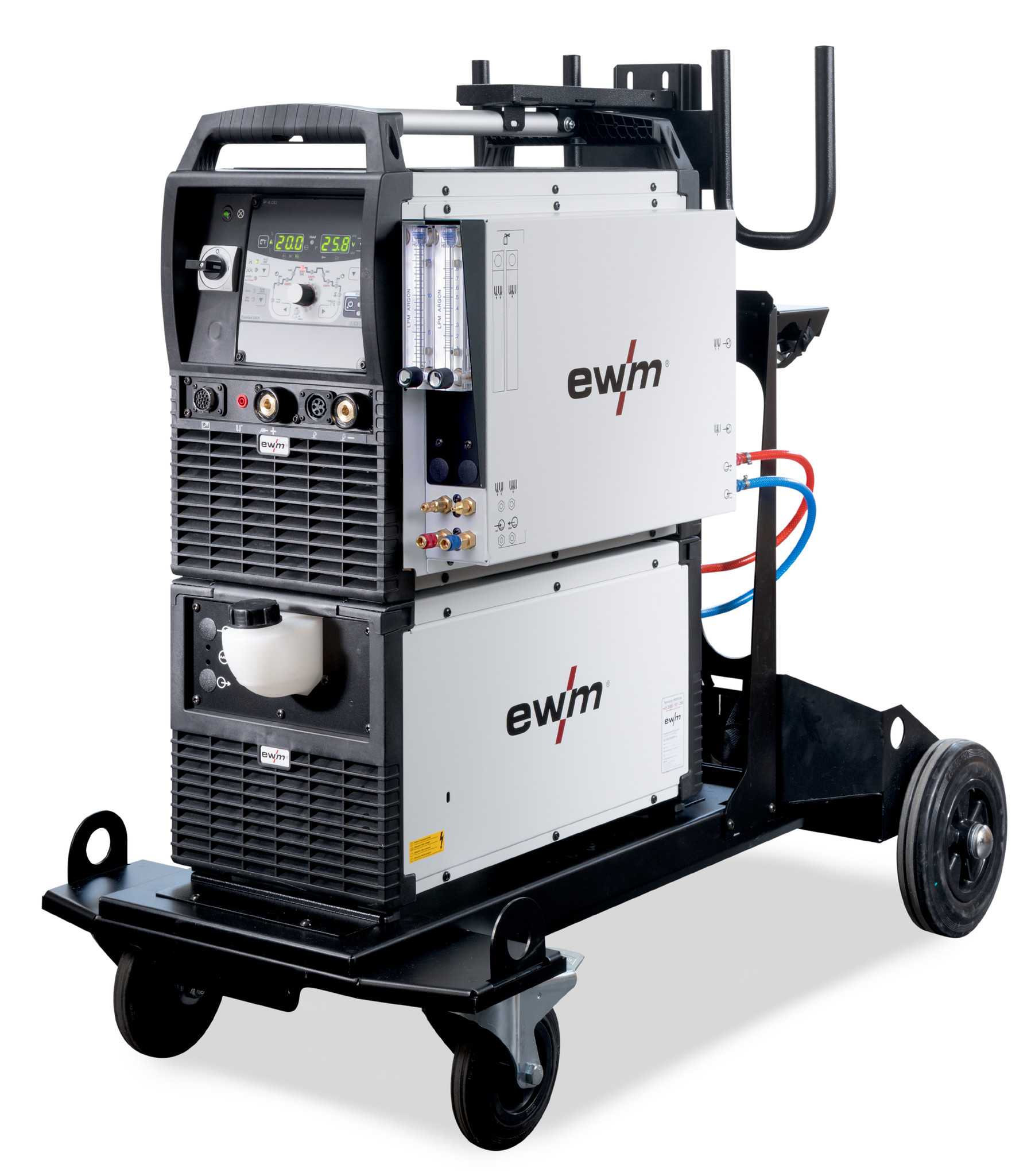

• Set-up with Trolly 55-6 and Cool 50 MPW50; alternatively, a separate recooling unit can be used
• No additional mains connection required for Cool 50 MPW50, the Cool unit is supplied with mains voltage via the power source
• Optional network connectivity with ewm Xnet software via LAN or WiFi gateway
• 3.5 m mains supply lead with 16 A shock-proof plug
• Please always use an electrode setting gauge to achieve optimum welding results

Technical data

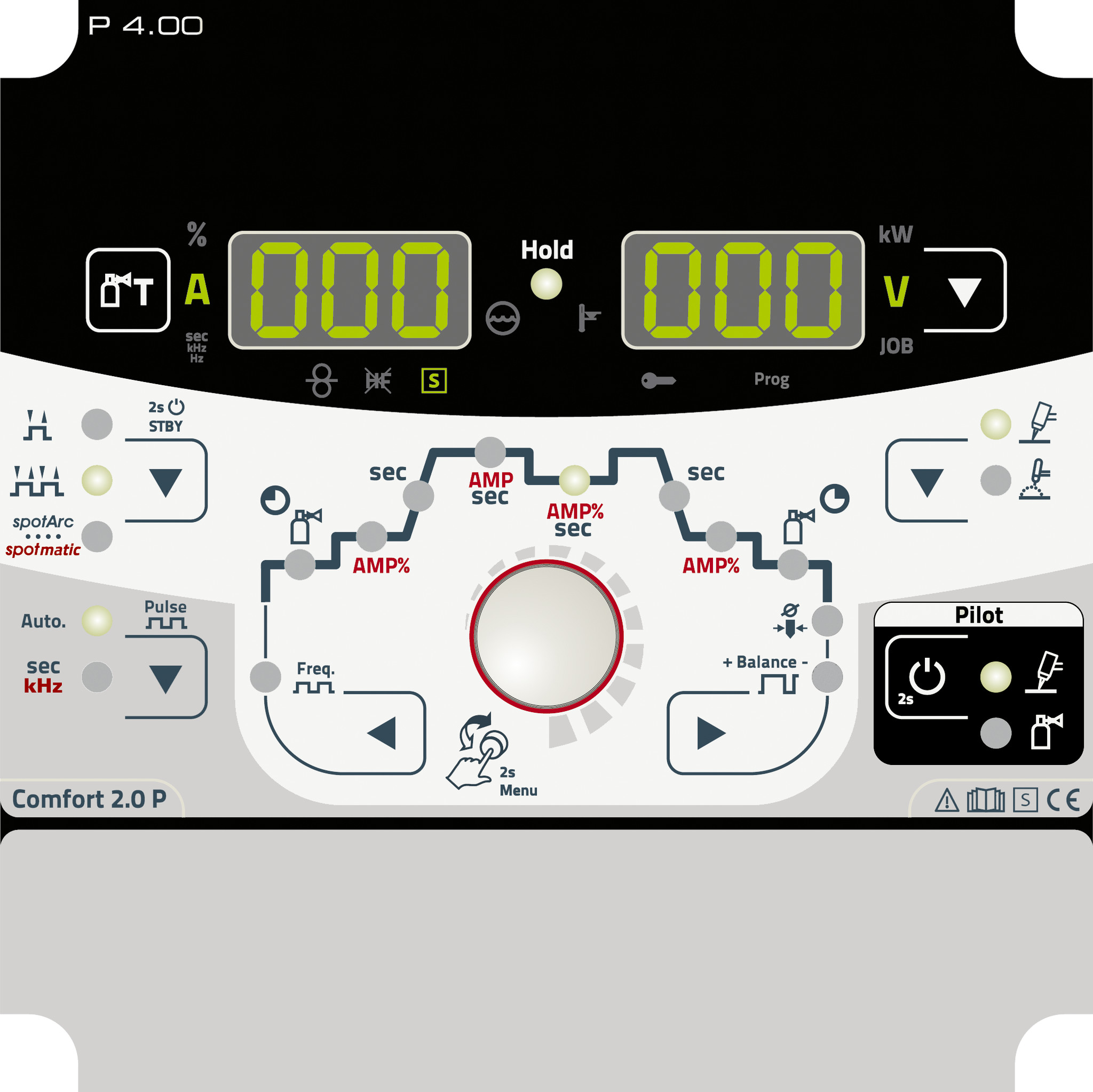

Control

• One-knob operation
• Welding sequence selection and parameter setting using click wheel or conventional operation with sequence buttons (back/forward)
• Expert menu for advanced welding parameter settings
